Retrofit comfort telephony wiring harness - AN82.70-P-0008-01ESD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2## 1# as of 6/1/10 as of model year 2011 in center console

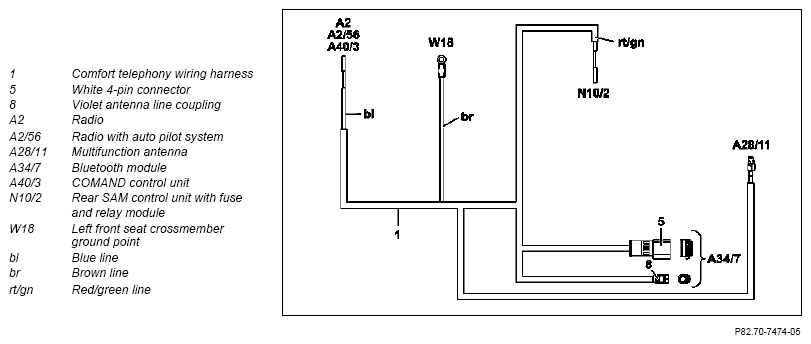

Connection scheme

Fig 1: Comfort Telephony Wiring Harness Connection Diagram

Courtesy of MERCEDES-BENZ USA

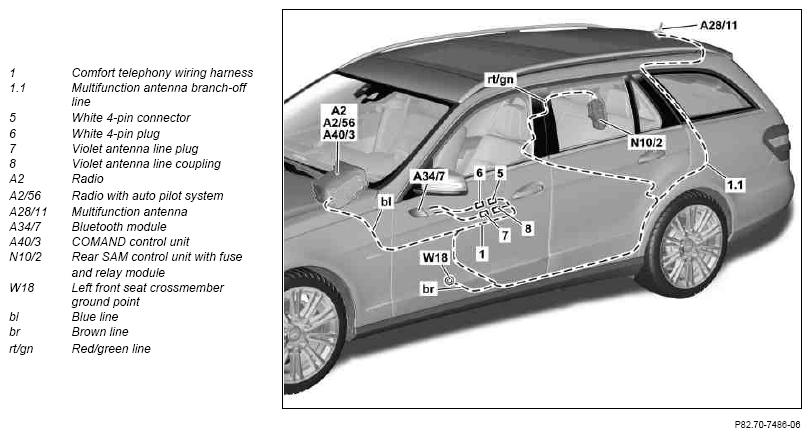

Routing diagram

Fig 2: Comfort Telephony Wiring Routing Diagram

Courtesy of MERCEDES-BENZ USA

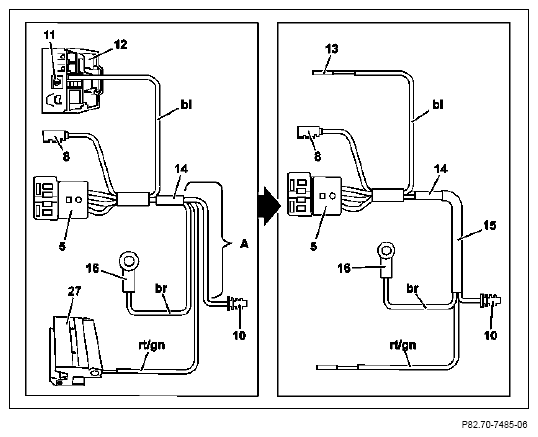

Release lock (11) at black 44- pin connector (12) and remove contact spring (13) of blue line (BU) from contact cavity "13" of black 44-pin connector (12).
The black 44-pin coupling (12) is a discontinued part.
Wrap felt tape (15) around comfort telephony wiring harness in area (A) to a length of approx. 960 mm starting from the insulation tape (14).
Remove green 7-pin fuse carrier (27) from red/green line (RD/GN).

Fig 3: Removing Green 7-Pin Fuse Carrier From Red/Green Line
Courtesy of MERCEDES-BENZ USA

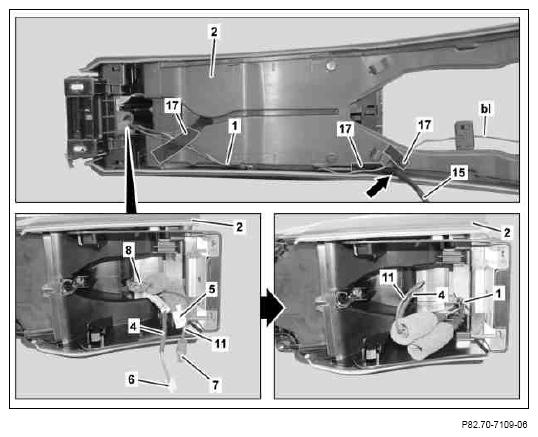

Route comfort telephony wiring harness (1) into removed center console (2), as shown, and fix in place using felt strips (17). Guide blue line (BU) into cutout for gearshift lever.
Note the position at which the comfort telephony wiring harness (1) is guided out (arrow).
Connect white 4-pin connector (6) of adapter line (4) to white 4- pin coupling (5) of comfort telephony wiring harness (1).
Connect violet antenna line connector (7) to violet antenna line coupling (8) of comfort telephony wiring harness (1).

Fig 4: Connect Violet Antenna Line Connector To Violet Antenna Line Couplings
