Retrofit Drive Kit Plus connecting cable for Apple iPhone - AZ82.60-P-0019-02EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/2 up to 4/13/13 up to model year 2014

IMPORTANT The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles, these operation steps must be carried out mirror-inverted.

  1. Cut out insulating felt (23) of glove compartment (22) in cross-hatched area.

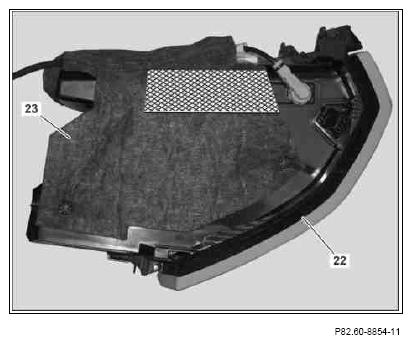

    Fig 1: Cutting Out Insulating Felt Of Glove Compartment
    G10241813Courtesy of MERCEDES-BENZ USA
  2. Make markings for hole center points for cutout at glove compartment (22).

    IMPORTANTDimensions:

    a = 22 mm

    b = 22 mm

    c = 34 mm

  3. Drill two holes with a diameter of 15 mm to match the markings.
  4. Use file to make an oval-shaped cutout.

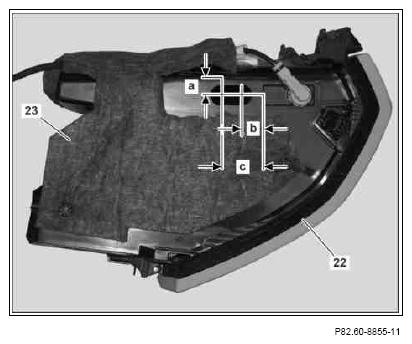

    Fig 2: Glove Compartment Center Point Holes Dimension
    G10241814Courtesy of MERCEDES-BENZ USA

    IMPORTANT Clarify with the customer whether the iPhone cradle (30) is to be installed.

  5. Clean underside of iPhone cradle (30).
  6. Remove carrier foil from Velcro dots (30.1).
  7. Fix Velcro dots (30.1) onto the underside of iPhone cradle (30).
  8. Attach felt dots (30.2) to Velcro dots (30.1).

    NOTES Do not remove the carrier foil of the felt dots (30.2) until just before mounting in the glove compartment.

    Otherwise there may be adhesion problems.

    Fig 3: Removing Carrier Foil From Velcro Dots
    G10241815Courtesy of MERCEDES-BENZ USA
  9. Open glove compartment (22).
  10. Clean inside area (22.1) of glove compartment (22).
  11. Place connection line (40) and data line (42) into the glove compartment (22) and route outwards through the previously made cutout.
  12. Install grommet (44) into the previously made cutout.
  13. Install iPhone cradle (30) in glove compartment (22).

    IMPORTANT Choose the position of the iPhone cradle (30) so that the connection line (40) and data line (42) are not kinked and the cutout for iPhone connector (45) is located in the area of the iPhone cradle (30) that faces the driver side.

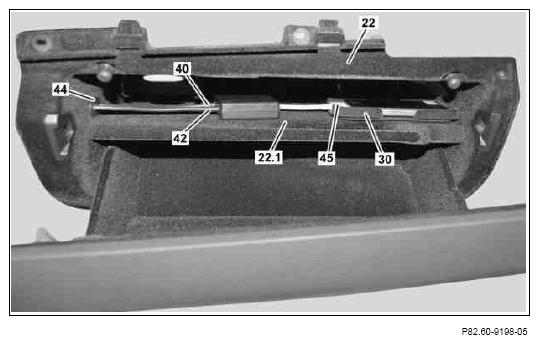

    Fig 4: Glove Compartment Connection Line And Iphone Cradle
    G10241816Courtesy of MERCEDES-BENZ USA
  14. Route connection line (40) and data line (42) under insulating felt (23) to back side of glove compartment (22).

    IMPORTANT The extended lengths of the connection line (40) and data line (42) are strapped down after installation of the glove compartment (22).

  15. Place glove compartment (22) into front passenger footwell.

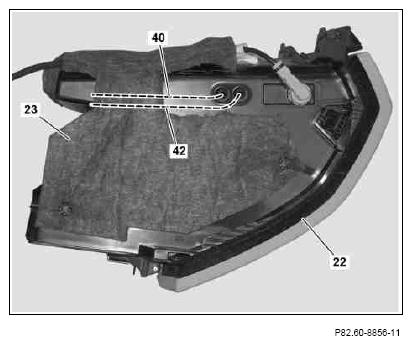

    Fig 5: Routing Connection Line And Data Line Under Insulating Felt
    G10241817Courtesy of MERCEDES-BENZ USA

    IMPORTANT Only perform the following operation steps for Drive Kit Plus for the Apple iPhone 5.

  16. Fold over side floor covering on the passenger side.
  17. Route data line into front area of front passenger footwell.
  18. Route connection line (40), starting from the glove compartment (22), behind the air duct (43) to the installation location of the Bluetooth module.
  19. Route connection line (41), starting from the front passenger footwell, behind the air duct (43) to the installation location of the Bluetooth module.

    IMPORTANT The black 4-pin connector (40.1) and the white 4-pin connector (41.1) are connected at a later stage to the Bluetooth module, and they are to be positioned between the air duct(43) and the center console. The data line is connected to the Drive Kit Plus control unit at a later stage.

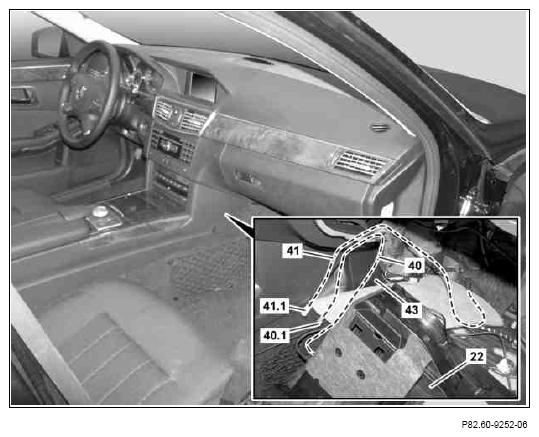

    Fig 6: Glove Compartment Routing Diagram
    G10241818Courtesy of MERCEDES-BENZ USA
