Retrofit Drive Kit Plus Media Interface adapter line for Apple iPhone - AZ82.60-P-0019-05EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/2 as of 6/1/11 as of model year 2012 with CODE 518 (Media interface)

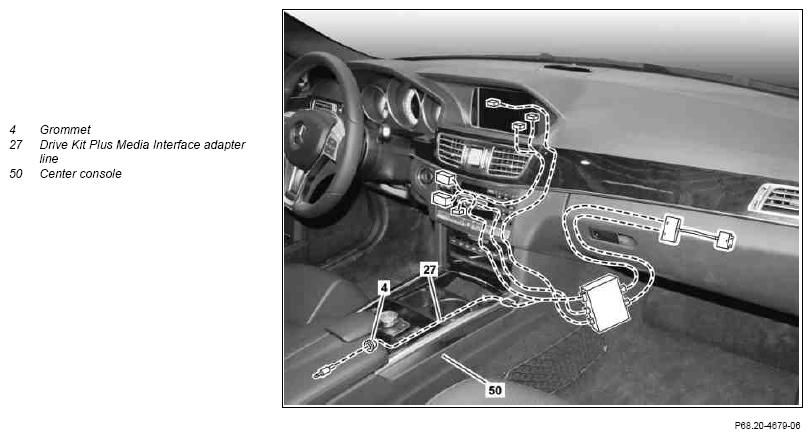

Routing diagram, shown on left-hand drive vehicle with Drive Kit Plus for the Apple iPhone 4 and CODE 527 (COMAND APS with single DVD drive (with navigation)) as of 14.04.13 as of model year 2014

Fig 1: Drive Kit Plus Media Interface Adapter Line Routing Diagram

Courtesy of MERCEDES-BENZ USA

The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles, these operation steps must be carried out mirror-inverted.

Fold up armrest (51) of center console (50).

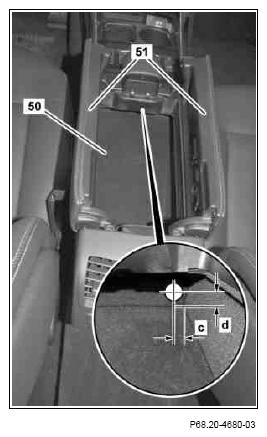

Make markings for the drill center point in the center console (50).
Dimensions:

c = 15 mm

D = 20 mm
Drill hole with a diameter of 19 mm.

Fig 2: Center Console Center Point Dimension
Courtesy of MERCEDES-BENZ USA

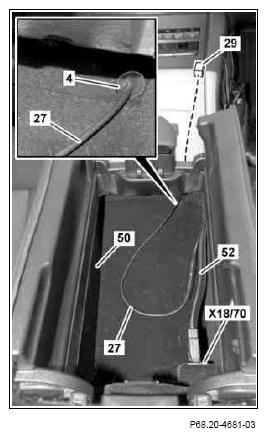

Route Drive Kit Plus Media Interface adapter line (27) through hole at center console (50) to device installation frame of audio component.
Use a pull-through device.

The white 4-pin plug (29) of the Drive Kit Plus Media Interface adapter line (27) is connected to the white 4-pin connector of the Drive Kit Plus adapter wiring harness at a later stage.
Install grommet (4) into the hole of the center console (50).
Connect consumer line (52) to the Drive Kit Plus Media Interface adapter line (27).
Connect consumer line (52) to the Media Interface electrical connector (X18/70).

Fig 3: Drive Kit Plus Media Interface Adapter Line And Plug
Courtesy of MERCEDES-BENZ USA
