Retrofit Drive Kit Plus LVDS wiring harness for Apple iPhone - AZ82.60-P-0019-04EWA
MODEL 212.0/2 as of 6/1/12 with CODE 510 (Audio 20 with CD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 523 (MB Audio 20 radio) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 528 (COMAND with DVD-changer USA (without navigation))
MODEL 212.0/2 as of 6/1/12 with CODE 512 (COMAND APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 528 (COMAND with DVD-changer USA (without navigation))
MODEL 212.0/2 as of 6/1/12 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 528 (COMAND with DVD-changer USA (without navigation))
MODEL 212.0/2 as of 6/1/12 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 510 (Audio 20 with CD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 523 (MB Audio 20 radio) without CODE 528 (COMAND with DVD-changer USA (without navigation))
MODEL 212.0/2 with CODE 088 (Control code NTG 4.5) with CODE 512 (COMAND APS with DVD changer) with CODE 802 (Model year 2012) without CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 212.0/2 with CODE 088 (Control code NTG 4.5) with CODE 527 (COMAND APS with single DVD drive (with navigation)) with CODE 802 (Model year 2012) without CODE 512 (COMAND APS with DVD changer)
The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles, these operation steps must be carried out mirror-inverted.
- Wrap felt tape around low voltage differential signal (LVDS) head unit wiring harness (15).
- Wrap felt tape around display low voltage differential signaling wiring harness (16).
- Insulate blue 4-pin connector of vehicle wiring harness and strap down.
The blue 4-pin connector of the vehicle wiring harness was connected to Audio/COMAND display (A40/8).
- Insulate gray 4-pin connector of vehicle wiring harness and strap down.
The gray 4-pin connector of the vehicle wiring harness was connected to the audio component.

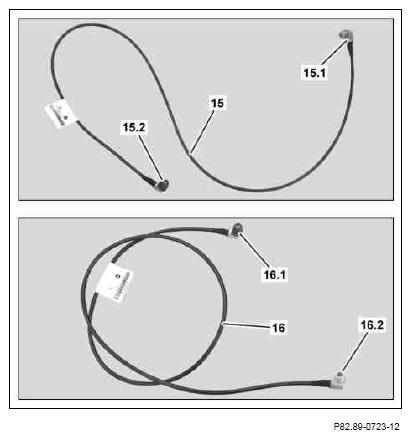

- Route LVDS head unit wiring harness (15) from device installation frame of the audio component into the front passenger footwell.
The gray 4-pin connector (15.1) must be located in the device installation frame for the audio component, and the blue 4-pin connector (15.2) must be in the front passenger footwell.

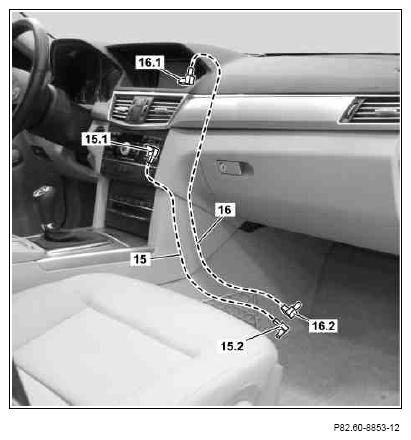

- Route LVDS display wiring harness (16) from display recess into the front passenger footwell.
The blue 4-pin connector (16.1) must be located in the display recess and the white 4-pin connector (16.2) in the front passenger footwell.
