Remove roof antenna - AN82.70-P-0008-03ES

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2## 1#

MODEL 212.2## 1# with CODE 511 (Audio 50 APS with DVD changer)
MODEL 212.2## 1# with CODE 512 (COMAND APS with DVD changer)

MODEL 212.2## 1# with CODE 525 (Audio 50 APS)

MODEL 212.2## 1# with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.2## 1# with CODE 537 (Digital radio) Pull out multifunction antenna electrical connection (A28/11x1) or multifunction antenna electrical connection (A28/11x2) behind the liftgate control drive unit (M51/3) and push back foam sheath.

The white multifunction antenna electrical connection (A28/11x2) is installed with CODE 537 (Digital radio). The violet multifunction antenna electrical connection (A28/11x1) is installed with CODE 511 (Audio 50 APS with DVD changer) or with CODE 512 (COMAND APS with DVD changer) or with CODE 525 (MB Audio 50 APS radio) or with CODE 527 (COMAND APS with single DVD drive (with navigation).

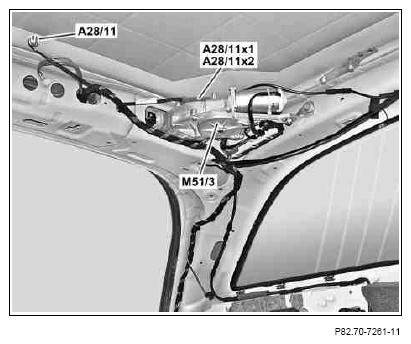

Fig 1: Liftgate Control Drive Unit And Multifunction Antenna Electrical Connections
Courtesy of MERCEDES-BENZ USA
MODEL 212.2## 1# with CODE 511 (Audio 50 APS with DVD changer)
MODEL 212.2## 1# with CODE 512 (COMAND APS with DVD changer)

MODEL 212.2## 1# with CODE 525 (Audio 50 APS)

MODEL 212.2## 1# with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.2## 1# with CODE 537 (Digital radio) Disconnect multifunction antenna electrical connection (A28/11x1) or multifunction antenna electrical connection (A28/11x2).

The white multifunction antenna electrical connection (A28/11x2) is installed with CODE (537) Digital radio. The violet multifunction antenna electrical connection (A28/11x1) is installed with CODE 511 (Audio 50 APS with DVD changer) or with CODE 512 (COMAND APS with DVD changer) or with CODE 525 (MB Audio 50 APS radio) or with CODE 527 (COMAND APS with single DVD drive (with navigation).
Unscrew screw/bolt (21) at multifunction antenna (A28/11) or multifunction antenna mock-up.

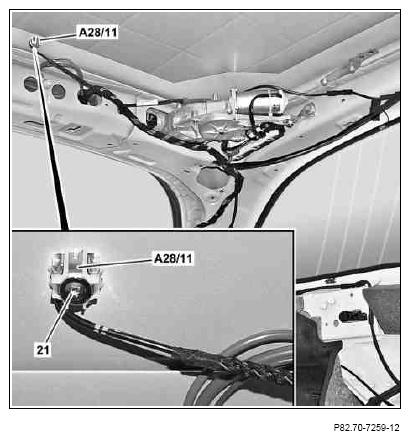

Fig 2: Screw/Bolt At Multifunction Antenna
Courtesy of MERCEDES-BENZ USA
Remove multifunction antenna (A28/11) or multifunction antenna mock-up.

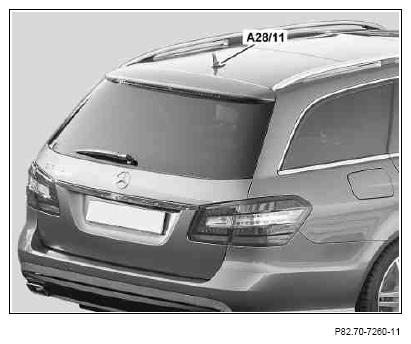

Fig 3: Removing Multifunction Antenna
Courtesy of MERCEDES-BENZ USA
