Blind Spot Assist, location of components - GF54.71-P-0003-02FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /2 up to 28.2.13 with CODE (234) Blind Spot Assist

MODEL 212.0 /2 up to 28.2.13 with CODE (237) Active Blind Spot Assist as of Model Year 2011 /AEJ 10

Vehicle with code (234) Blind Spot Assist

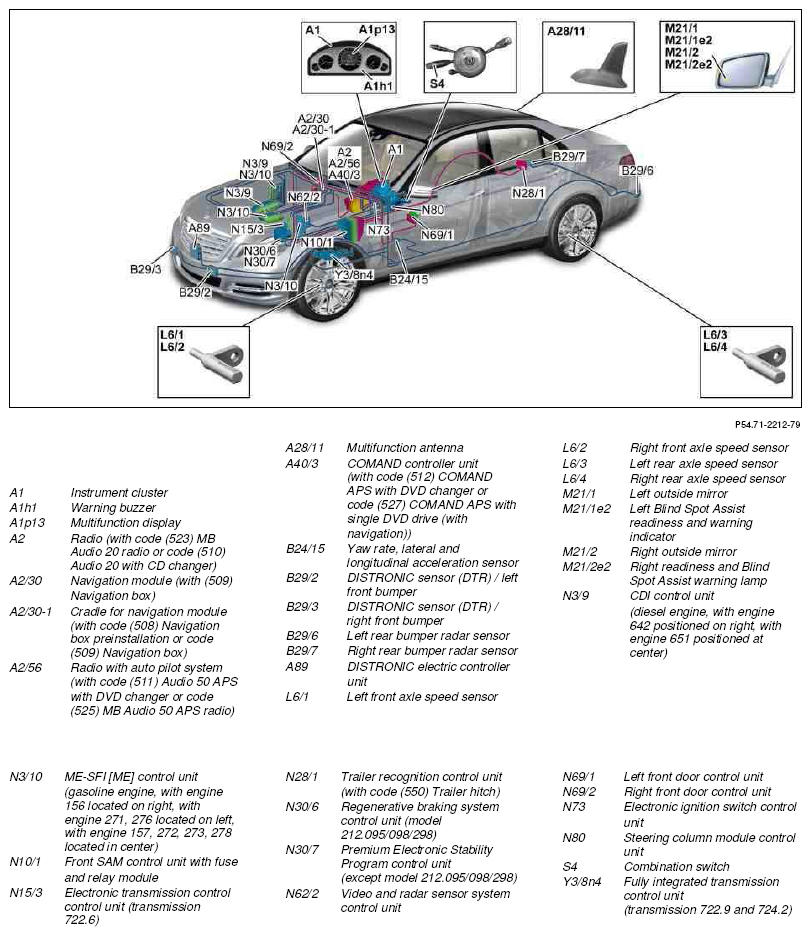

Fig 1: Blind Spot Assist Components - Vehicle With Code (234)

Courtesy of MERCEDES-BENZ USA

Vehicle as of 1.6.10 with code (237) Active Blind Spot Assist

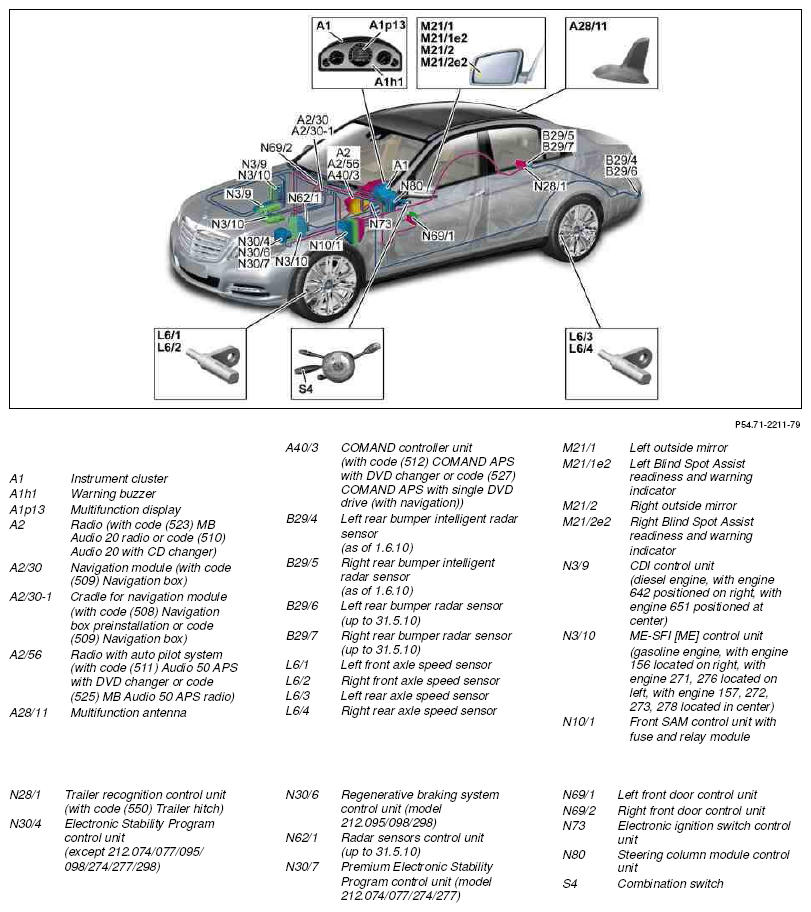

Fig 2: Blind Spot Assist Components - Vehicle With Code (237)

Courtesy of MERCEDES-BENZ USA
