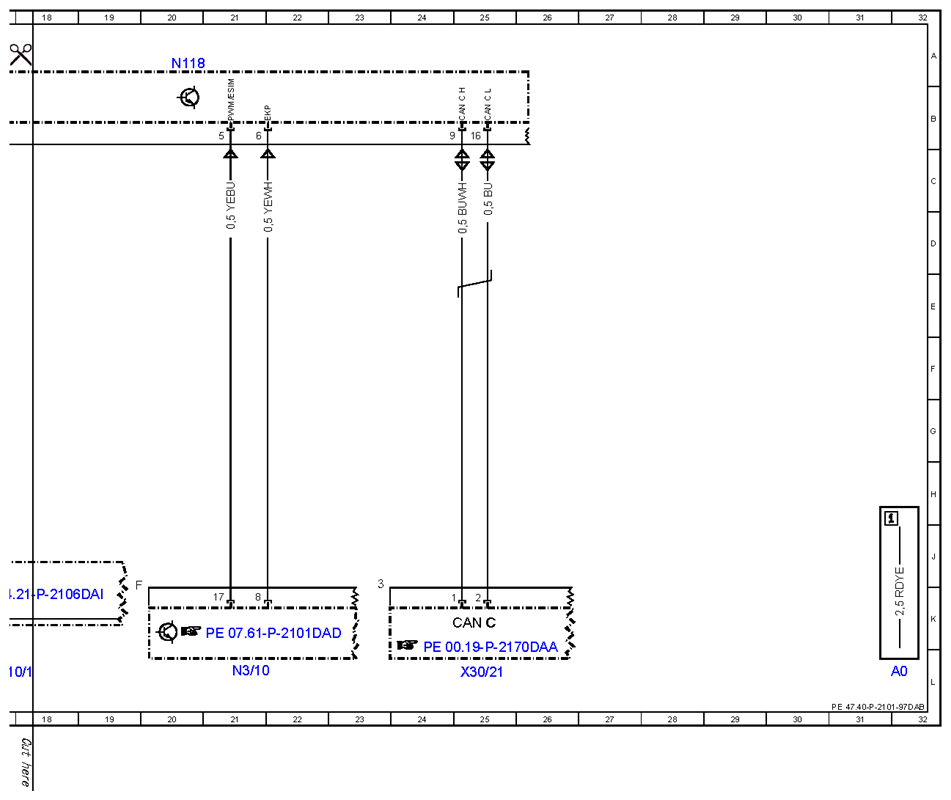

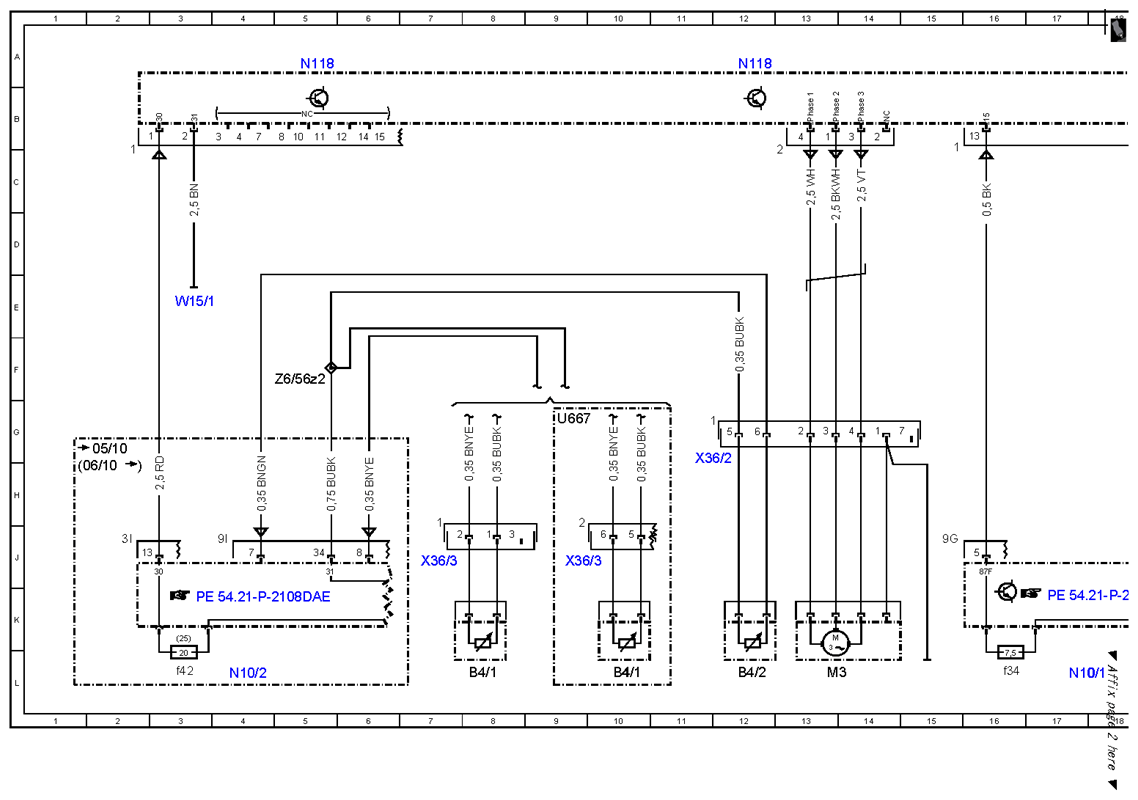

Wiring diagram for fuel system control unit - PE47.40-P-2101-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 212.077/277 Control unit N118
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B4/1 | Left fuel level indicator sensor | 8L |
| B4/1 | Left fuel level indicator sensor | 10L |
| B4/2 | Right fuel level indicator sensor | 12L |
| CAN C | Drive train CAN | 25K |
| M3 | Fuel pump (FP) | 13L |
| N10/1 | Front SAM control unit with fuse and relay module | 17L |
| N10/1f34 | Fuse 34 | 20L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4L |
| N10/2f42 | Fuse 42 | 3L |
| N118 | Fuel pump control unit | 5A |
| N118 | Fuel pump control unit | 12A |
| N118 | Fuel pump control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 21L |
| U667 | Valid for California | 9G |
| W15/1 | Right footwell ground point | 3E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 25L |
| X36/2 | Fuel pump and vehicle rear wiring harness electrical connector | 12H |
| X36/3 | Fuel pump harness electrical connector | 9J |
| X36/3 | Fuel pump harness electrical connector | 7J |
| Z6/56z2 | Circuit 31 connector sleeve | 5F |
