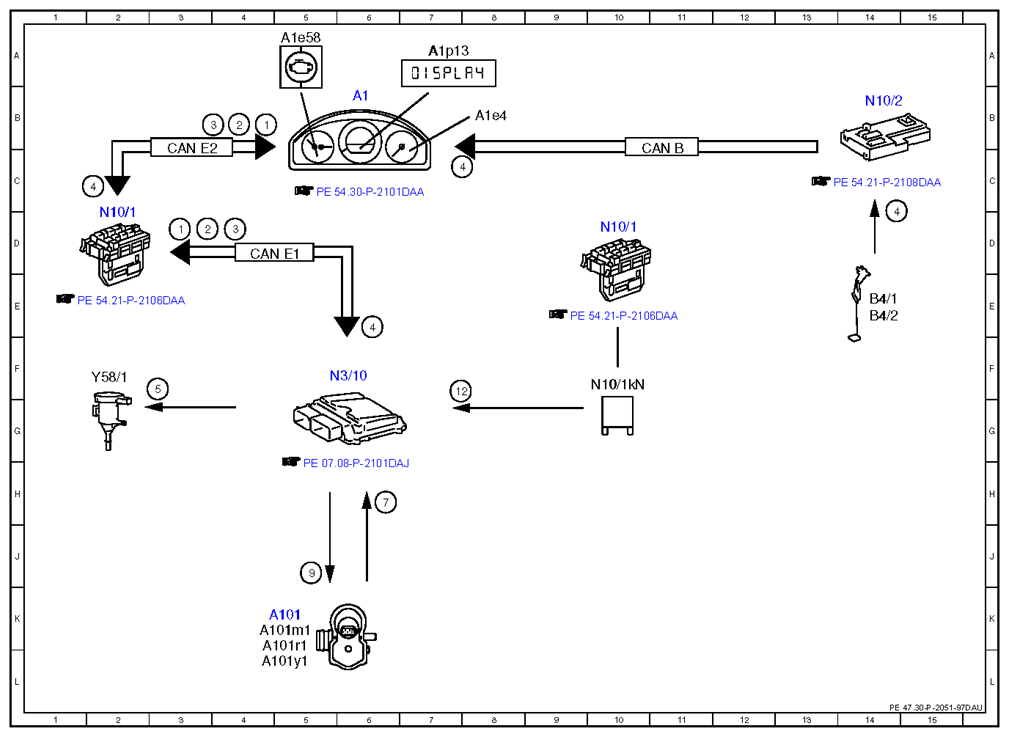

Electrical function schematic for system purging with leak test - PE47.30-P-2051-97DAU
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212.095 as of model year 2014 with CODE 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 3D |
| 1 | Engine diagnosis indicator lamp, actuation | 4B |
| 12 | Circuit 87, status | 7F |
| 2 | Instrument cluster, message | 3D |
| 2 | Instrument cluster, message | 4B |
| 3 | Fuel reserve warning lamp, actuation | 4D |
| 3 | Fuel reserve warning lamp, actuation | 3B |
| 4 | Fuel level, signal | 6E |
| 4 | Fuel level, signal | 14D |
| 4 | Fuel level, signal | 7C |
| 4 | Fuel level, signal | 2C |
| 5 | Purging switchover valve, actuation | 3F |
| 7 | Fuel tank diagnostic module, status | 6H |
| 9 | Fuel tank diagnostic module, actuation | 5J |
| A1 | Instrument cluster | 6B |
| A101 | Fuel tank diagnostic module | 5K |
| A101m1 | Fuel tank diagnostic module pump | 4K |
| A101r1 | Fuel tank diagnostic module heating element | 4L |
| A101y1 | Fuel tank diagnostic module solenoid valve | 4L |
| A1e4 | Fuel reserve indicator lamp | 8B |
| A1e58 | Engine diagnosis indicator lamp | 5A |
| A1p13 | Multifunction display | 7A |
| B4/1 | Left fuel level indicator sensor | 14E |
| B4/2 | Right fuel level indicator sensor | 14E |
| CAN B | Interior CAN | 11C |
| CAN E1 | Chassis CAN 1 | 4D |
| CAN E2 | Chassis CAN 2 | 3C |
| N10/1 | Front SAM control unit with fuse and relay module | 10D |
| N10/1 | Front SAM control unit with fuse and relay module | 2D |
| N10/1kN | Engine circuit 87 relay | 10F |
| N10/2 | Rear SAM control unit with fuse and relay module | 14B |
| N3/10 | ME-SFI [ME] control unit | 6F |
| Y58/1 | Purge control valve | 2F |
