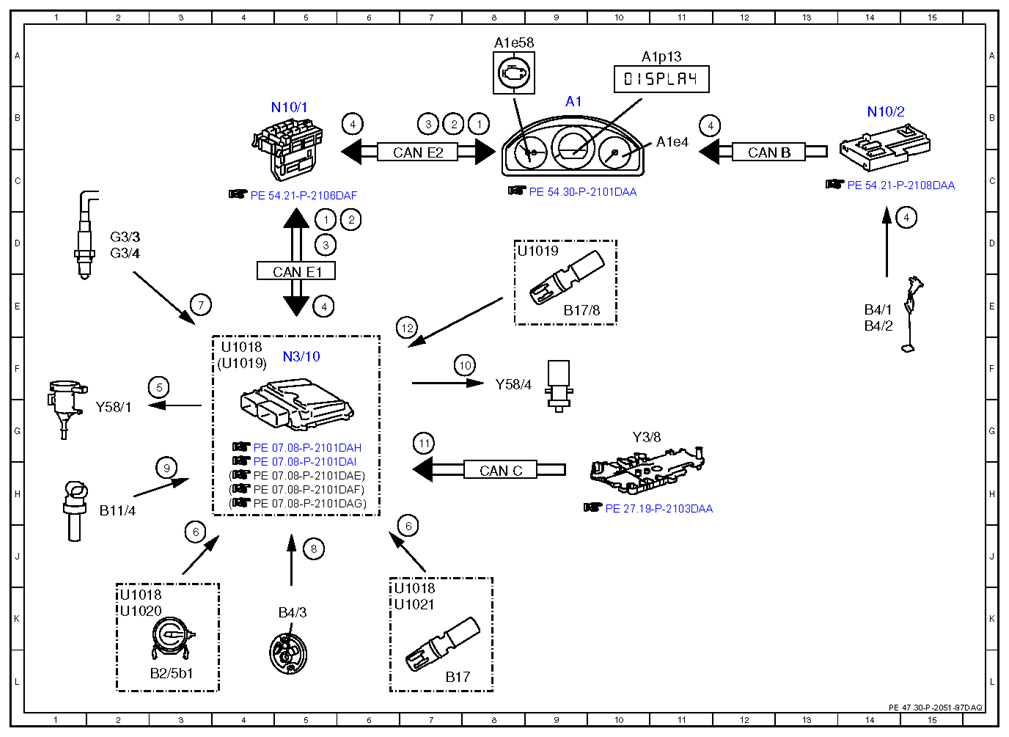

Electrical function schematic for system purging with leak test - PE47.30-P-2051-97DAQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157.9, 276.9, 278.9 in MODEL 212 (except 212.095) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 8B |
| 1 | Engine diagnosis indicator lamp, actuation | 5D |
| 10 | Activated charcoal canister shutoff valve, actuation | 7F |
| 11 | Gear range, status | 7G |
| 12 | Charge air temperature sensor, signal | 7E |
| 2 | Instrument cluster, message | 7B |
| 2 | Instrument cluster, message | 6D |
| 3 | Fuel reserve warning lamp, actuation | 7B |
| 3 | Fuel reserve warning lamp, actuation | 5D |
| 4 | Fuel level, signal | 5E |
| 4 | Fuel level, signal | 11B |
| 4 | Fuel level, signal | 15D |
| 4 | Fuel level, signal | 6B |
| 5 | Purging switchover valve, actuation | 3F |
| 6 | Intake air temperature sensor, signal | 3J |
| 6 | Intake air temperature sensor, signal | 7J |
| 7 | Oxygen sensor, signal | 3E |
| 8 | Fuel tank pressure sensor, signal | 5J |
| 9 | Coolant temperature sensor, signal | 3H |
| A1 | Instrument cluster | 9B |
| A1e4 | Fuel reserve indicator lamp | 11B |
| A1e58 | Engine diagnosis indicator lamp | 8A |
| A1p13 | Multifunction display | 11A |
| B11/4 | Coolant temperature sensor | 2H |
| B17 | Intake air temperature sensor | 7L |
| B17/8 | Charge air temperature sensor | 9E |
| B2/5b1 | Intake air temperature sensor | 3L |
| B4/1 | Left fuel level indicator sensor | 14E |
| B4/2 | Right fuel level indicator sensor | 14E |
| B4/3 | Fuel tank pressure sensor | 5K |
| CAN B | Interior CAN | 12C |
| CAN C | Drive train CAN | 8H |
| CAN E1 | Chassis CAN 1 | 5E |
| CAN E2 | Chassis CAN 2 | 7C |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 2D |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 2D |
| N10/1 | Front SAM control unit with fuse and relay module | 5B |
| N10/2 | Rear SAM control unit with fuse and relay module | 14B |
| N3/10 | ME-SFI [ME] control unit | 5F |
| U1018 | Valid for gasoline engine 276 | 2K |
| U1018 | Valid for gasoline engine 276 | 6K |
| U1018 | Valid for gasoline engine 276 | 4F |
| U1019 | Valid for gasoline engine 278 | 8D |
| U1019 | Valid for gasoline engine 278 | 4F |
| U1020 | Valid for gasoline engine with stratified operation | 2K |
| U1021 | Not valid for gasoline engine with stratified operation | 6K |
| Y3/8 | Fully integrated transmission control control unit | 10G |
| Y58/1 | Purge control valve | 2G |
| Y58/4 | Activated charcoal filter shutoff valve | 8F |
