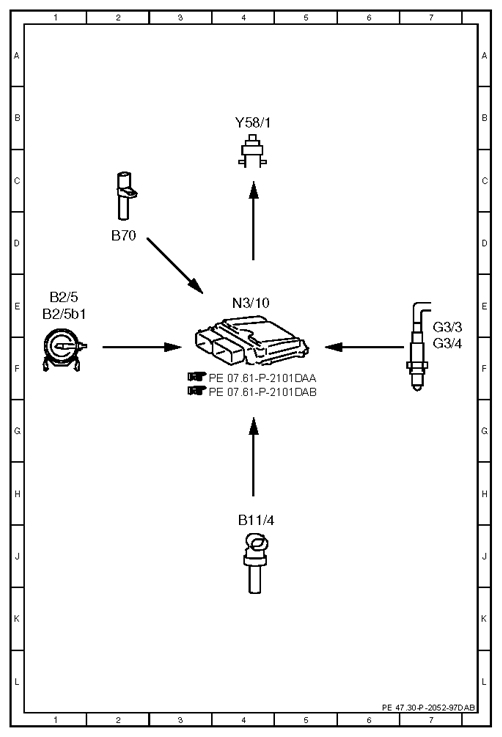

Electrical function diagram for purging function - PE47.30-P-2052-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with ENGINE 272, 273 except ENGINE 272.98
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 4J |
| B2/5 | Hot film mass air flow sensor | 1E |
| B2/5b1 | Intake air temperature sensor | 1E |
| B70 | Crankshaft Hall sensor | 2D |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7E |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 7F |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y58/1 | Purge control valve | 4B |
