Remove/install activated charcoal canister - AR47.30-P-8212EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with ENGINE 156, 157, 272, 273, 276, 278 except CODE (494) USA version

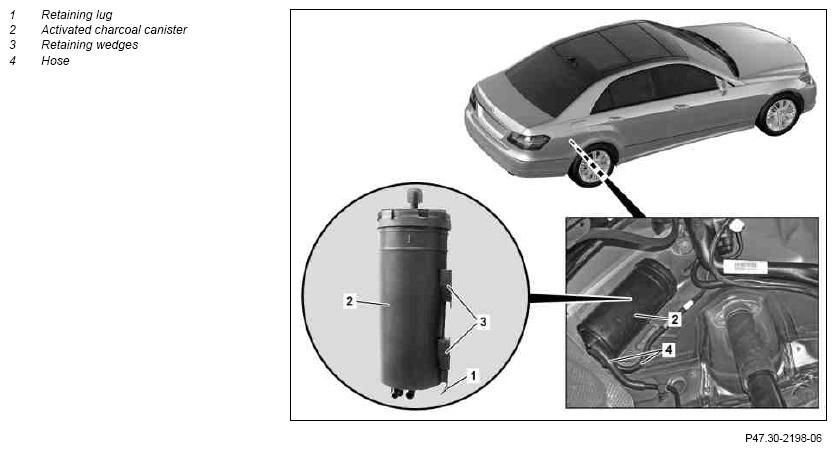

Fig 1: Activated Charcoal Canister Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel	No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
1	Remove right rear wheel
	Remove/install wheels		AP40.10-P-4050EW
2	Unfasten fender liner in RH rear fender and fold out to the rear
3	Unlatch retaining lug (1) and push activated charcoal canister (2) upwards out of the mounts	Introduce both retaining wedges (3) into mounts on wheel well.
4	Detach hoses (4) on activated charcoal canister (2) and remove activated charcoal canister (2) downwards	Check activated charcoal canister (2) and replace if necessary.
5	Install in the reverse order
