Check condition and leaktightness of fuel system - AP47.00-P-4750TZV

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272 in MODEL 164, 204, 207, 211, 212, 251 with CODE (917) Gas-tight fuel tank

Shown on model 164

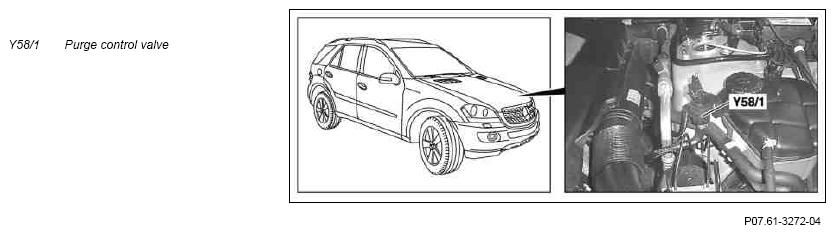

Fig 1: Purge Control Valve - Shown On Model 164
G09976806Courtesy of MERCEDES-BENZ USA

Shown on model 164

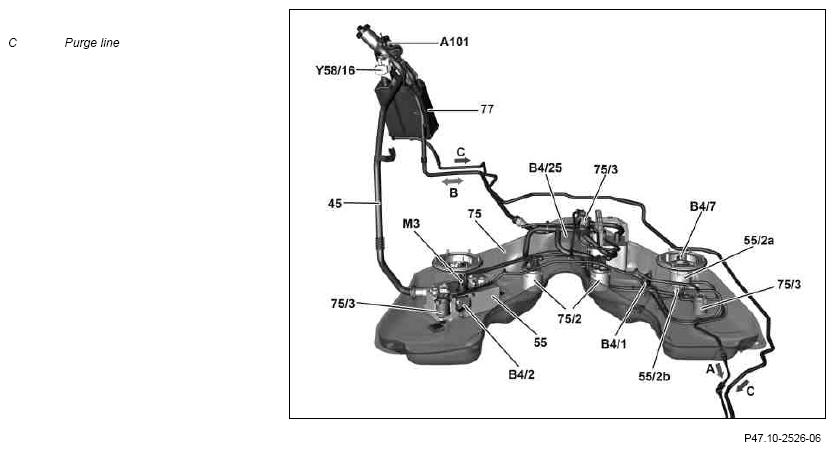

Fig 2: Fuel System Purge Line - Shown On Model 164
G09976807Courtesy of MERCEDES-BENZ USA
INSPECT Checking
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking.
Pour fuels only into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.		 AS47.00-Z-0001-01A
IMPORTANT Preconditions for leak test are cleanliness, accessibility and thoroughness Cleanliness:
  • Remove fuel remains outside the fuel system.
  • Allow vehicle to flash off.

Accessibility:
  • The best possible solution is to remove service flaps and covers.

Thoroughness:
  • Carry out the test systematically and calmly
  • For positive measurements: Clean position and repeat test.

1 Close purging switchover valve (Y58/1), to do this use STAR DIAGNOSIS Menu guidance:
  • Engine control module
  • Adaptations
  • Fuel tank leak test

REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
2 Detach purge line (C) at purging switchover valve (Y58/1)
3 Disconnect vacuum tester from purge line (C) SPECIAL TOOL Fig 3
4 Apply pressure to fuel system with overpressure Readjust until overpressure remains stable.
Overpressure value:
70 mbar  or 1.0 psi
5 Sniff fuel system at constant overpressure or check for substance concentration due to escaping gas Concentration value: Maximum 5 ppm
(ppm → parts per million)
Repeat test when the limit value of 5 ppm is exceeded.
Peaker 3000 flex (article number 61010753)
Gas leak detectors
6 Disconnect vacuum tester from purge line (C) SPECIAL TOOL Fig 3
7 Fasten purge line (C) to purging switchover valve (Y58/1) IMPORTANT Replace hose clamp.
8 Open purging switchover valve (Y58/1), to do this use STAR DIAGNOSIS Menu guidance:
  • Engine control module
  • Adaptations
  • Fuel tank leak test

REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
9 Test run engine and check fuel line for leaktightness
Fig 3: Identifying Vacuum Tester (201 589 13 21 00)
G09976808Courtesy of MERCEDES-BENZ USA
