Repair supplemental restraint system (SRS) squib wiring harness - AR54.18-P-0600A
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 117, 124, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 190, 197, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 240, 242, 245, 246, 251, 414, 461 as of 4/1/94, 463
MODEL 126 with CODE 291 (Airbag for driver and front passenger)
MODEL 126 with CODE 442 (Airbag in steering wheel)
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side up and do not subject to temperatures above 100 °C. When working on these units, disconnect power supply and unplug test connector/plug of the airbag (AB) with emergency tensioning retractor (X11/13). | AS91.00-Z-0001-01B | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by burns to skin and eyes. Risk of poisoning caused by inhaling fumes when working with heat-shrinkable tubing. | Work in well ventilated rooms only. Wear safety glasses with side protection and protective gloves. | AS00.19-Z-0001-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Notes on replacement of safety-relevant and special components | AH00.19-P-1000-08A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01A | ||
| Notes on cable protection | AH00.19-P-1000-11A | ||
| Remove | |||
| 1 | Remove detachable parts in the repair area | ||
| Repair wiring harness | |||

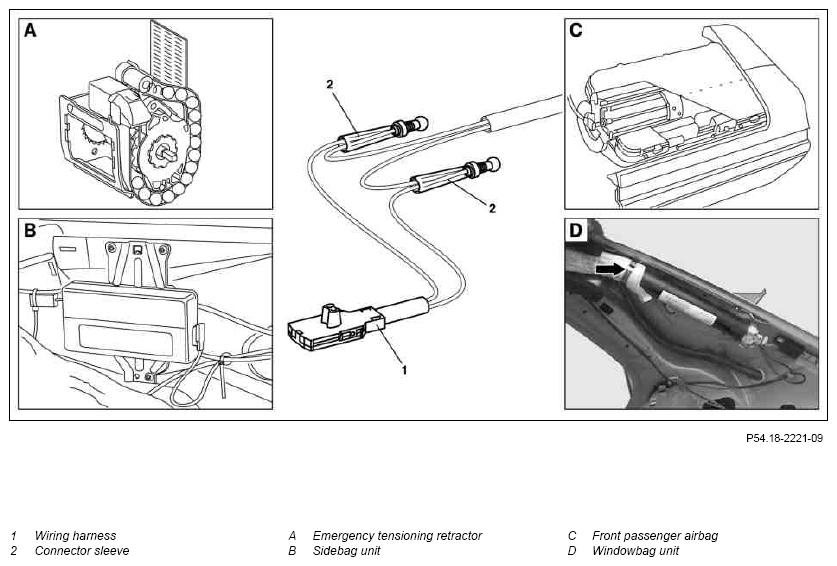

| 2 | Repair wiring harness (1) using connector sleeve (2) | AR00.19-P-0100-09A | |
| Fig 8 | |||
| Fig 2 | |||
| Fig 7 | |||
| Fig 6 | |||
| Fig 9 | |||
| Fig 3 | |||
| 3 | Protect repair area after cable repairs | AR00.19-P-0100-08A | |
| Check | |||
| 4 | Check wiring harness (1) after completing cable repair | AR54.18-P-0600-01A | |
| Figure | |||
| Figure | |||
| Install | |||
| 5 | Install removed detachable parts in repair area |
