Remove/install chassis Gateway control unit - AR54.21-P-0060EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package)
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect diagnostic system and perform commissioning of chassis gateway control unit (N93/7) | When replacing chassis gateway control unit (N93/7). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition | ||
| 3 | Fold back floor covering in passenger footwell | ||

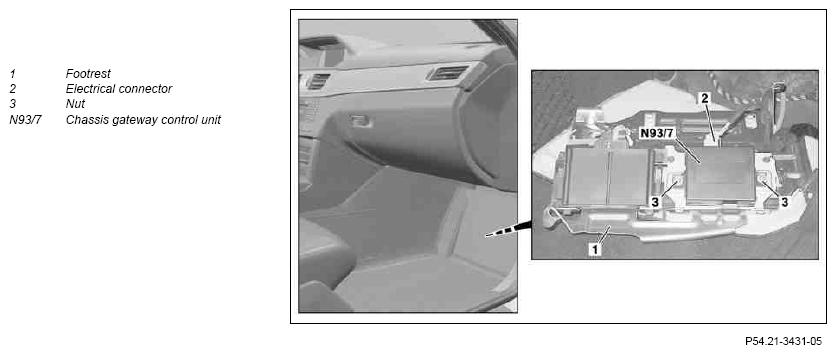

| 4 | Detach footrest (1) and fold back | ||
| 5 | Unscrew nuts (3) | ||
| 6 | Disconnect electrical connection (2) and remove chassis gateway control unit (N93/7) | ||
| 7 | Install in the reverse order |
