Check condition of additional battery - AR54.10-P-1128EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212 with CODE B03 (ECO start/stop function)
MODEL 218 with CODE B03 (ECO start/stop function) without CODE 4U7 (Start/stop voltage dip protector)
Shown on model 212.0
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

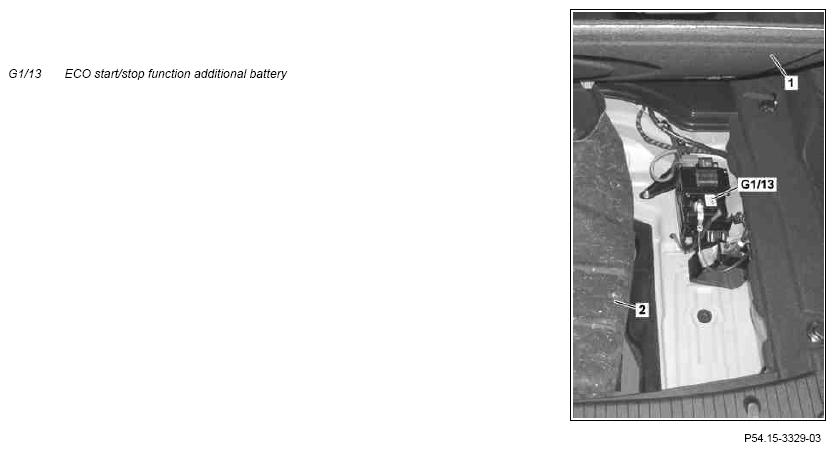

| 1 | Expose additional battery for ECO start/stop function (G1/13) in trunk or load compartment | MODEL 207 with CODE B03 (ECO start/stop function) |
AR54.10-P-0007EC |
| MODEL 212 with CODE B03 (ECO start/stop function) MODEL 218 with CODE B03 (ECO start/stop function) without CODE 4U7 (Start/stop voltage dip protector) |
AR54.10-P-0007ES | ||
| Check | |||
| 2 | Visually inspect additional battery for ECO start/stop function (G1/13) for signs of external leaks | In event of leakage to additional battery for ECO start/stop function (G1/13): Replace additional battery for ECO start/stop function (G1/13). |
|
| MODEL 207 with CODE B03 (ECO start/stop function) |
AR54.10-P-0007EC | ||
| MODEL 212 with CODE B03 (ECO start/stop function) MODEL 218 with CODE B03 (ECO start/stop function) without CODE 4U7 (Start/stop voltage dip protector) |
AR54.10-P-0007ES | ||
| 3 | Check additional battery for ECO start/stop function (G1/13) | AR54.10-P-1129-01A | |
| MODEL 207 with CODE B03 (ECO start/stop function) MODEL 212 with CODE 803 (Model year 2013) with CODE B03 (ECO start/stop function) |
*BE54.10-P-1001-01A | ||
| MODEL 212 with CODE B03 (ECO start/stop function) without CODE 803 (Model year 2003) MODEL 218 with CODE B03 (ECO start/stop function) without CODE 4U7 (Start/stop voltage dip protector) Battery tester |
*BE54.10-P-1017-01A | ||
| 4 | Charge additional battery for ECO start/stop function (G1/13) directly at the battery terminals | If the display of the battery tester/test equipment shows "Charge and test". Battery tester |
|
| 5 | Check additional battery for ECO start/stop function (G1/13) again | If the display of the battery tester/test equipment shows "Charge and test". Battery tester | |
| 6 | Install in the reverse order |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | MODEL ALL | |||
|---|---|---|---|---|---|
| BE54.10-P-1001-01A | Battery capacity 12 Ah | Cold cranking amps | As per EN | A | 170 |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | MODEL ALL | |||
|---|---|---|---|---|---|
| BE54.10-P-1017-01A | Battery capacity 12 Ah | Cold cranking amps | As per EN | A | 200 |
