Check warning lamps, indicator lamps and interior illumination - AP54.30-P-5452C

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164 (except 164.121/124/125/156/182/823/824/825) with CODE 805 (Model year 2005) with CODE 806 (Model year 2006) with CODE 807 (Model year 2007) with CODE 808 (Model year 2008)

MODEL 166, 176, 204, 207, 212, 216, 221

MODEL 169 (except 169.090) with CODE 804 (Model year 2004) with CODE 805 (Model year 2005) with CODE 806 (Model year 2006) with CODE 807 (Model year 2007) with CODE 808 (Model year 2008)

MODEL 169.090

MODEL 171 (except 171.445/458) up to model year 2008

MODEL 203, 209, 230

MODEL 211 (except 211.057/207/252/257) up to model year 2007

MODEL 219 (except 219.354) up to model year 2007

MODEL 245 (except 245.286) with CODE 805 (Model year 2005) with CODE 806 (Model year 2006) with CODE 807 (Model year 2007) with CODE 808 (Model year 2008)

MODEL 251 (except 251.021/023/123/124/125) up to model year 2008

Shown on model 164

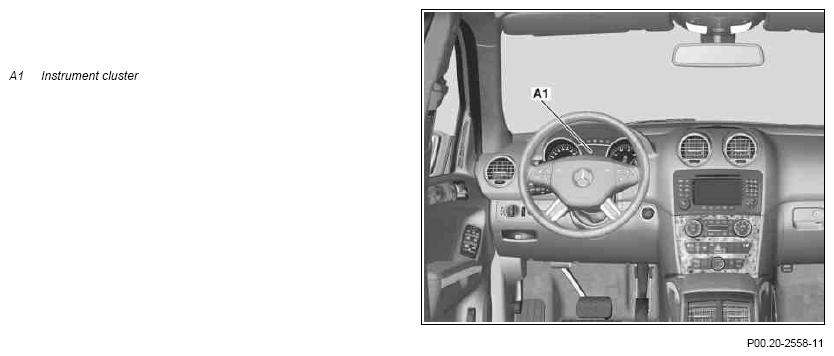

Fig 1: Instrument Cluster

Courtesy of MERCEDES-BENZ USA

	Check
1	Switch off engine and switch on ignition
2	Operate parking brake
3	Check warning and indicator lamps for proper operation	In the event of complaints: ↓ Determine and rectify cause, subject to separate repair order.
5	Check instrument panel illumination for proper operation	If there are problems: ↓ Determine and rectify cause, subject to separate repair order.
7	Switch on lamps in passenger compartment and check for proper operation	Check inside rearview mirror, reading, mirror and glove compartment lamps. If there are problems: ↓ Determine and rectify cause, subject to separate repair order.
8	Switch off lamps in passenger compartment and ignition
