Remove/install torque converter - AR27.20-P-0500-01EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

Fig 1: Identifying Parallel Rest (126 589 04 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Assembly Device (725 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1008-06A	Silicone-based grease	A 001 989 28 51 10

Position transmission vertically.
Mount assembly device (2) on torque converter.
To do so, set the height of the assembly device (2) on the knob (1) so that this can be slid over the guide (A) of the torque converter.
Turn the assembly device (2) clockwise until the guide (A) lies against the torque converter.
Pull the knob (1) tight until the torque converter and assembly device (2) engage with each other (arrow).
Remove torque converter without tilting.

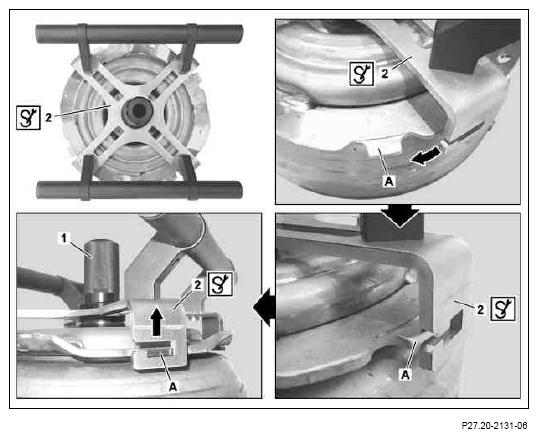

Fig 3: Turning Assembly Device Clockwise
Courtesy of MERCEDES-BENZ USA
(6.1) Drain transmission oil from the torque converter through a clean cloth.
In case metal shavings are present in the transmission oil pan.

In event of transmission oil that is burnt or contaminated with wear debris:

If there are metal shavings present on the cloth, the torque converter must be replaced. Otherwise, the transmission will be damaged by any remaining metal shavings.

(6.2) Rinse torque converter, oil lines and oil cooler.

Remove torque converter

Apply a little multi-purpose paste to journal (3).
Insert torque converter carefully without tilting.
Do not use force.

Otherwise, the axial end stop of the torque converter will be destroyed.

Ensure that radial shaft sealing ring (4) is not touched or damaged.

Otherwise, this can lead to leaks and damage in the transmission.

Ensure that the gearing of the drive shaft and of the torque converter align.

When doing so, move the torque converter back and forth until the drive spigots of the oil pump engage in the cutouts of the torque converter.

Insert torque converter

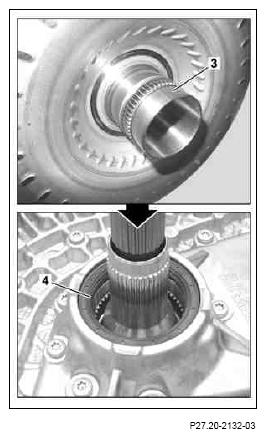

Fig 4: Inserting Torque Converter

Courtesy of MERCEDES-BENZ USA

Check that torque converter is seated correctly

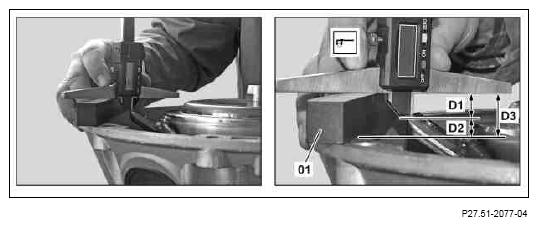

Fig 5: Checking Torque Converter Is Seated Correctly

Courtesy of MERCEDES-BENZ USA

The torque converter must sit correctly.

Otherwise, the transmission will be damaged and cause damage to the oil pump.

Place parallel gauge (01) on flange of transmission housing.
Use a vernier caliper to measure the difference dimension (D1) from the parallel gauge (01) to the bolt flange of the torque converter.
Add measured difference dimension (D1) and specified distance dimension (D2) together.

For a correctly installed torque converter, the sum (D1+D2) corresponds to the thickness (D3) of the parallel gauge (01): D1+ D2= D3.

If D1+ D2 ≈ ≈ D3:

Take the torque converter out again, install once more and ensure correct fit.

Detach assembly device (2) from torque converter.
