Remove/install oil pump radial shaft sealing ring - AR27.40-P-0300A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.6/9 Torque converter removed

MODIFICATION NOTES

12.6.13

Special tool "drift 722 589 00 15 00" replaced by "drift 722 589 16 15 00"

Operation step 2

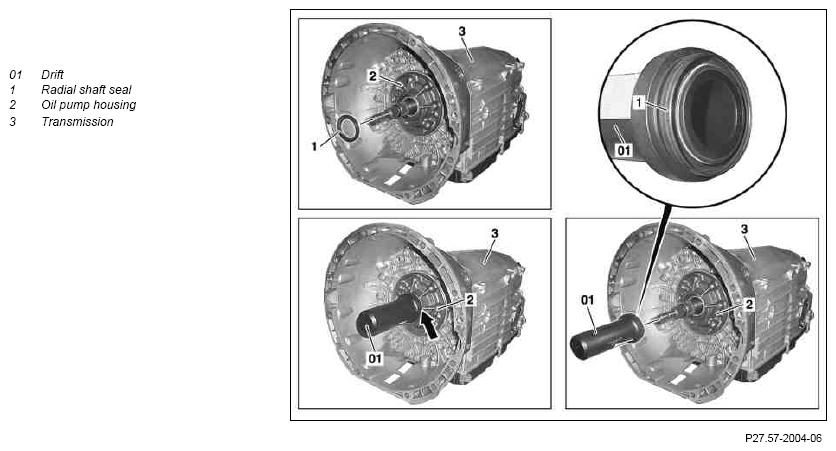

Fig 1: Oil Pump Radial Shaft Sealing Ring Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Lever radial shaft sealing ring (1) out of oil pump housing (2)	Do not damage seat of radial shaft sealing ring (1). Otherwise oil loss and therefore damage or destruction of the transmission (3) may occur.
	Install
2	Install radial shaft sealing ring (1) flush using drift (01)	Replace radial shaft seal (1). Coat radial shaft sealing ring (1) between lips with multipurpose paste.
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Drift	Fig 2

Fig 2: Identifying Drift (722 589 16 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1009-06A	Multi-purpose paste	A 000 989 80 51 10
