Remove/install auxiliary oil pump for automatic transmission - AR27.30-P-0651EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 725.0
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||

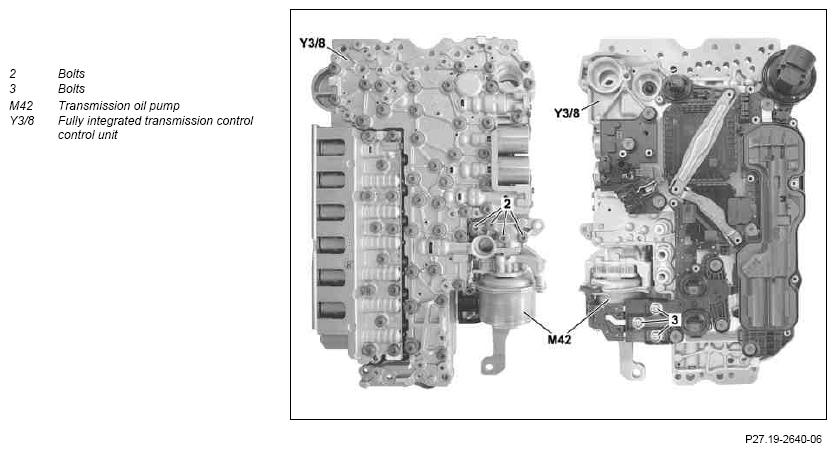

| 1 | Remove fully integrated transmission control controller unit (Y3/8) | AR27.19-P-0200EWM | |
Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. |
|||
| 2 | Remove screws/bolts (3) | *BA27.19-P-1004-01D | |
| 3 | Unscrew screws/bolts (2) and remove the electrical transmission oil pump (M42) | ||
| *BA27.19-P-1002-01D | |||
| 4 | Install in the reverse order |
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | TRANSMISSION 725.0 | ||
|---|---|---|---|---|
| BA27.19-P-1002-01D | Screw/bolt, auxiliary oil pump to shift valve body cover | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 90 | ||
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | TRANSMISSION 725.0 | |
|---|---|---|---|
| BA27.19-P-1004-01D | Screw/bolt, electrical connection for auxiliary oil pump to control unit | Nm | 5 |
