Fasten transmission on assembly stand - AR27.10-P-0600-01W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9

Fig 1: Identifying Assembly Stand (116 589 06 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Support Plate (140 589 34 63 00)

Courtesy of MERCEDES-BENZ USA

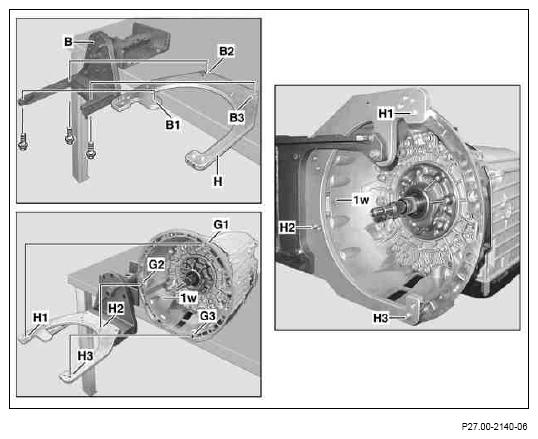

Bolt support plate (H) to assembly stand (B) at threaded holes (B1, B2, B3).
Align holes (G1, G2, G3) of torque converter housing (1w) with threaded holes (H1, H2, H3) of support plate (H).
After positioning, secure the transmission to prevent it from tilting and slipping off.
Bolt torque converter housing (1w) to support plate (H) at threaded holes (H1, H2, H3).

Fig 3: Aligning Holes Of Torque Converter Housing With Threaded Holes Of Support Plate
Courtesy of MERCEDES-BENZ USA
