Fasten transmission on assembly stand - AR27.10-P-0600-01EH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 724.2

000 588 00 31 00 Assembly stand

WS01.00-N-3028B

MODIFICATION NOTES

9.1.14

Assembly device special tool, 724 589 03 40 00 replaced by 724 589 04 40 00.

Fig 1: Identifying Lifting Device (724 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Assembly Device (724 589 04 40 00)

Courtesy of MERCEDES-BENZ USA

Mount assembly device (1) onto assembly stand (2) and tighten bolts.
Release locking lever (6) and open assembly device (1).

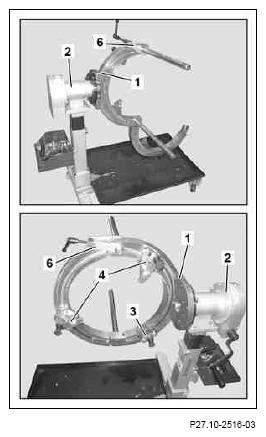

Fig 3: Mounting Assembly Device Onto Assembly Stand
Courtesy of MERCEDES-BENZ USA
Mount lifting device (9), as shown, to transmission housing.
Ensure that lifting device (9) in the cutouts on transmission housing are seated correctly (arrow). If necessary, check by surging at the lifting device (9).
Attach transmission to boom crane with lifting device (9).

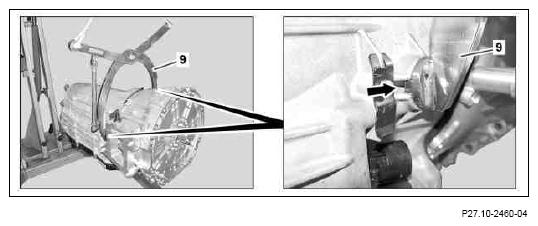

Fig 4: Mounting Lifting Device To Transmission Housing
Courtesy of MERCEDES-BENZ USA

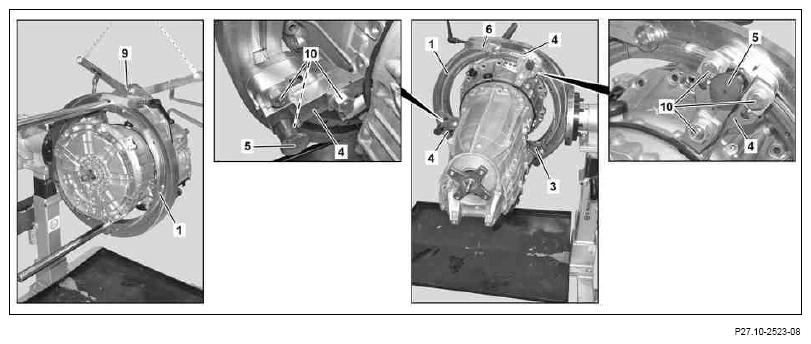

Fig 5: Sliding Transmission Onto Assembly Device In Bracket
Courtesy of MERCEDES-BENZ USA
Unfasten bracket (4) and release retainers (5) on bracket (3, 4).
Slide transmission onto assembly device (1), position in bracket (3).
Close assembly device (1) and lock locking lever (6).
Position bracket (4) on transmission, until retainer (5) audibly latches fully into place then tighten bolts (10) on bracket (4).
Detach lifting device (9) from transmission.
