Drain gear oil from torque converter - AR27.20-P-0200-03R
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6/9 with drain screw on torque converter
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. | AS00.40-Z-0001-01A | |
| Do not pour transmission oil into beverage bottles. | |||
| Notes on automatic transmission | AH27.19-P-0001-01NKB |
MODIFICATION NOTES
| 23.09.2019 | Document migrated and revised. |
TORQUE CONVERTER
| Number | Designation | Transmission 722.6 except 722.648 | Transmission 722.648 | ||
|---|---|---|---|---|---|
| BA27.20-P-1001-01C | Drain screw to torque converter | M8 | Nm | 10 | 10 |
| M10 | Nm | 15 | 15 | ||
TORQUE CONVERTER
| Number | Designation | Transmission 722.9 | ||
|---|---|---|---|---|
| BA27.20-P-1001-01C | Drain screw to torque converter | M8 | Nm | 10 |
| M10 | Nm | 15 | ||

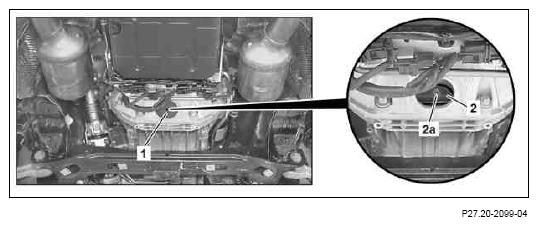

- Remove cover (1) from torque converter housing.
- Continue turning engine at center bolt of crankshaft in direction of engine rotation until the drain screw (2a) at the torque converter (2) is accessible. If the center bolt is not accessible.
↓
Continue turning engine using a wide screwdriver at the torque converter (2) until the drain screw (2a) is accessible.
- Position oil receptacle under torque converter (2).
Commercially available devices/tools
Oil receptacle
- Remove drain screw (2a) from torque converter (2) and drain automatic transmission fluid.
- Screw drain screw (2a) into torque converter (2)
.
- Install cover (1) in torque converter housing.
