Bolt tightening procedure for cylinder head cover - AR01.20-P-5014-03SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 273
CYLINDER HEAD
| Number | Designation | Engine 273 | |||
|---|---|---|---|---|---|
| BA01.30-P-1004-01O | Bolt, cylinder head cover to cylinder head | M7 | Stage 1 | Nm | 12 |
| Stage 2 | ∠° | 90 | |||
Tighten cylinder head cover bolts in the numerical sequence.

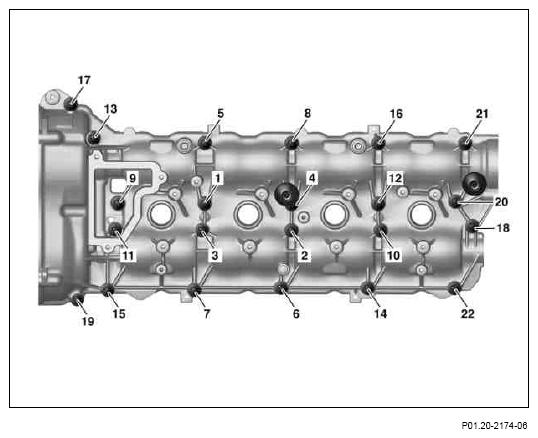

Right cylinder head cover
- Tighten bolts (1 to 22) with Stage 1.
- Tighten bolts (1 to 22) with Stage 2.

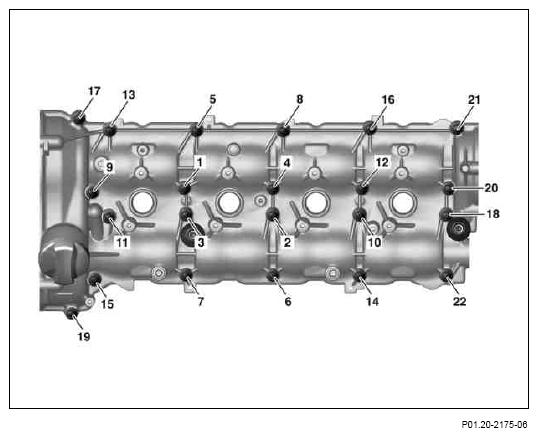

Left cylinder head cover
- Tighten bolts (1 to 22) with Stage 1.
- Tighten bolts (1 to 22) with Stage 2.
