Wiring diagram of reversing camera - PE54.65-P-2103-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

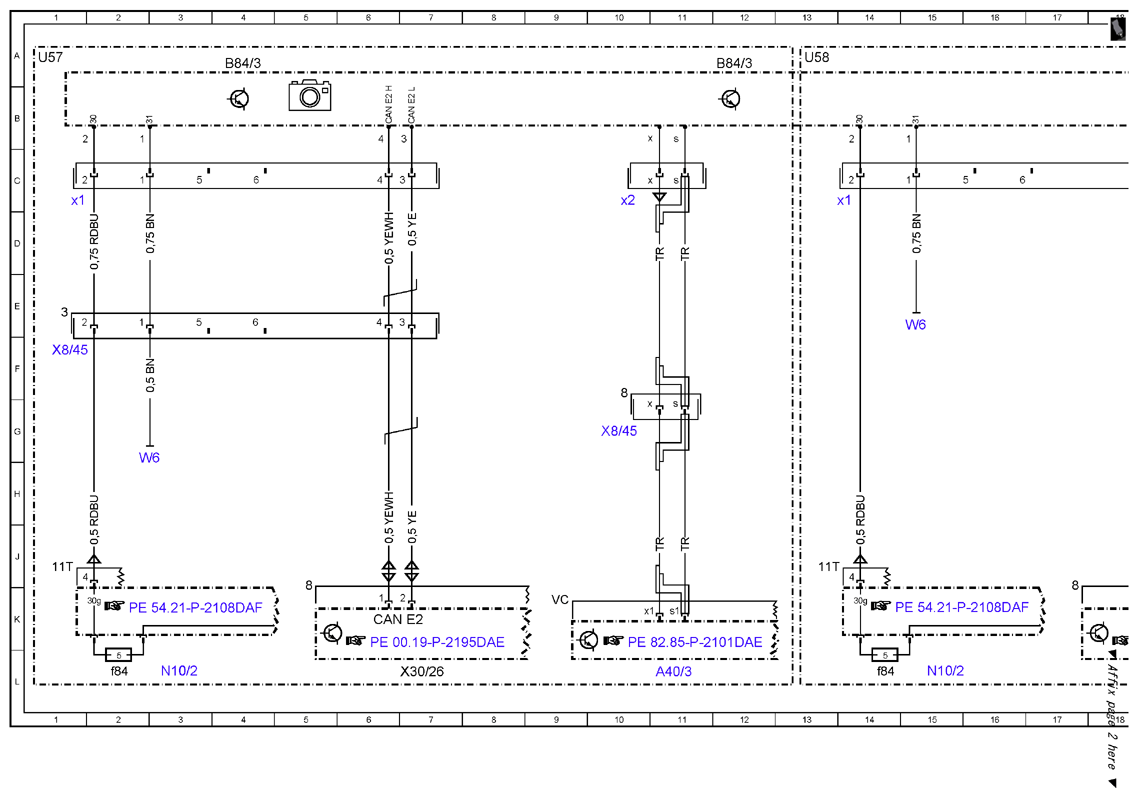

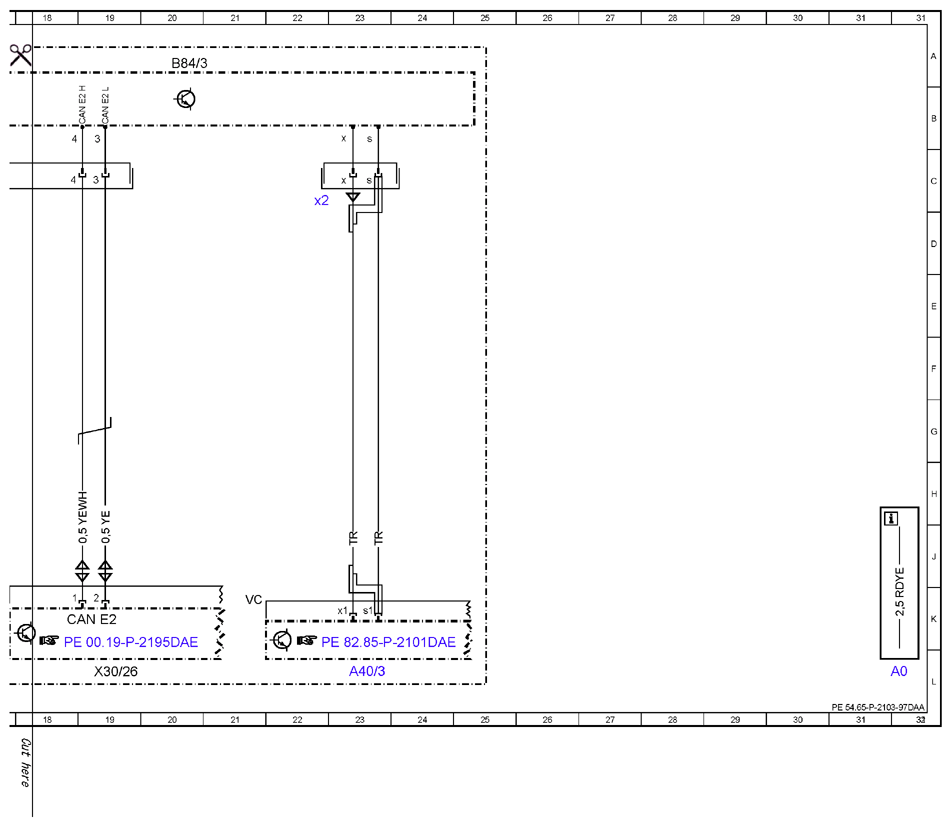

MODEL 212 up to 3/1/15 as of model year 2014 with CODE 218 (Rear view camera) B84/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A40/3 | COMAND control unit | 11L |
| A40/3 | COMAND control unit | 23L |
| B84/3 | Backup camera | 4A |
| B84/3 | Backup camera | 12A |
| B84/3 | Backup camera | 20A |
| B84/3x1 | Backup camera electrical connector | 1C |
| B84/3x1 | Backup camera electrical connector | 14C |
| B84/3x2 | Reversing camera electrical connector 2 | 10C |
| B84/3x2 | Reversing camera electrical connector 2 | 22C |
| CAN E2 | Chassis CAN 2 | 6K |
| CAN E2 | Chassis CAN 2 | 19K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2 | Rear SAM control unit with fuse and relay module | 15L |
| N10/2f84 | Fuse 84 | 2L |
| N10/2f84 | Fuse 84 | 14L |
| U57 | Valid for model 212.2 | 1A |
| U58 | Valid for model 212.0/1 | 13A |
| W6 | Left rear wheel well ground point | 2H |
| W6 | Left rear wheel well ground point | 15E |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 7L |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 19L |
| X8/45 | Left vehicle interior and tailgate electrical connector | 1F |
| X8/45 | Left vehicle interior and tailgate electrical connector | 10G |
