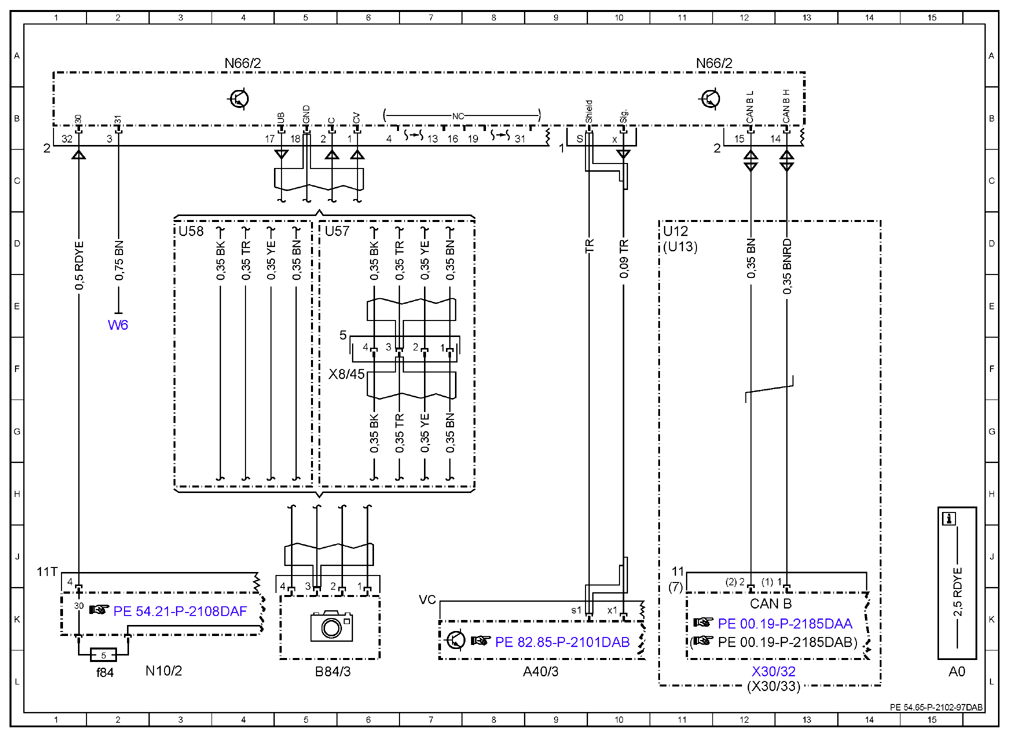

Wiring diagram for backup camera control unit - PE54.65-P-2102-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) Control unit N66/2
| Code: | Designation: | Position: |
|---|---|---|
| A40/3 | COMAND control unit | 9L |
| B84/3 | Backup camera | 5L |
| CAN B | Interior CAN | 12K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N66/2 | Backup camera control unit | 4A |
| N66/2 | Backup camera control unit | 11A |
| U12 | Valid for left-hand drive vehicles | 11D |
| U13 | Valid for right-hand drive vehicles | 11D |
| U57 | Valid for model 212.2 | 5D |
| U58 | Valid for model 212.0/1 | 3D |
| W6 | Left rear wheel well ground point | 2E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 12L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 12L |
| X8/45 | Left vehicle interior and tailgate electrical connector | 6F |
