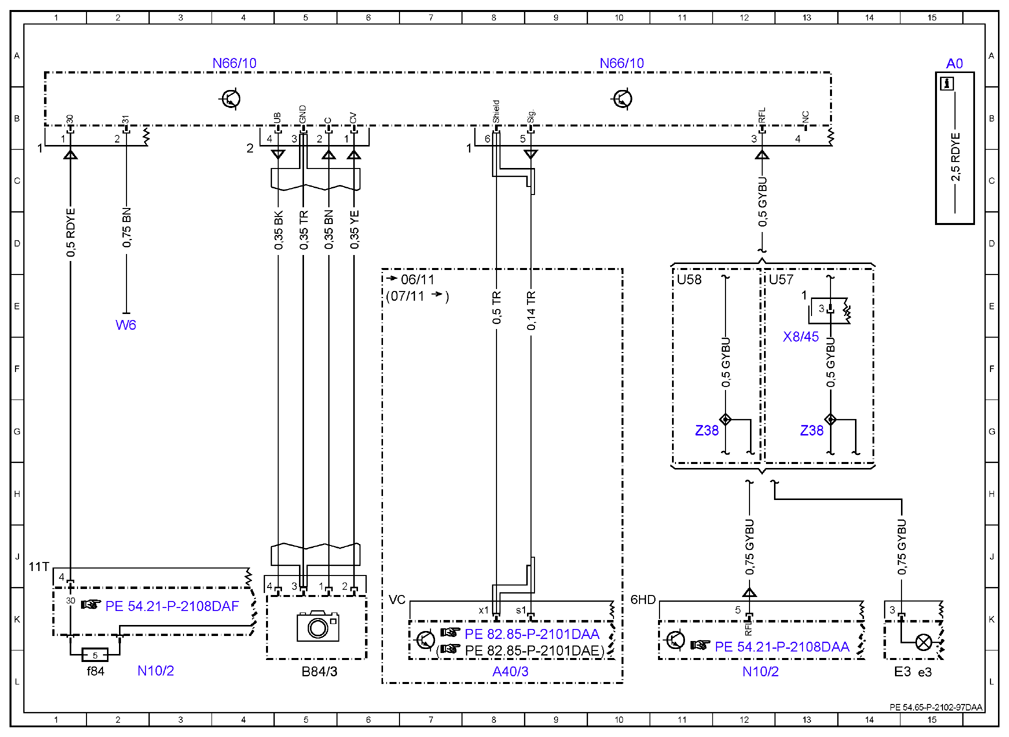

Wiring diagram for backup camera control unit - PE54.65-P-2102-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 218 (Rear view camera) except CODE 498 (Japanese version) Control unit N66/10
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15A |
| A40/3 | COMAND control unit | 8L |
| B84/3 | Backup camera | 5L |
| E3 | Left rear lamp unit | 14L |
| E3e3 | Left backup lamp | 15L |
| N10/2 | Rear SAM control unit with fuse and relay module | 2L |
| N10/2 | Rear SAM control unit with fuse and relay module | 12L |
| N10/2f84 | Fuse 84 | 2L |
| N66/10 | Backup camera voltage supply module | 4A |
| N66/10 | Backup camera voltage supply module | 10A |
| U57 | Valid for model 212.2 | 12E |
| U58 | Valid for model 212.0/1 | 11E |
| W6 | Left rear wheel well ground point | 2E |
| X8/45 | Left vehicle interior and tailgate electrical connector | 13F |
| Z38 | Backup lamp connector sleeve | 11G |
| Z38 | Backup lamp connector sleeve | 13G |
