Wiring diagram for Parktronic system (PTS) control unit - PE54.65-P-2101-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 6/1/13 with CODE 220 (PARKTRONIC) Control unit N62
MODEL 212 as of 6/1/13 with CODE 235 (Active Parking Assist with PARKTRONIC) Control unit N62
MODEL 212 as of 6/1/13 with CODE 501 (360° camera) Control unit N62'
| Code: | Designation: | Position: |
|---|---|---|

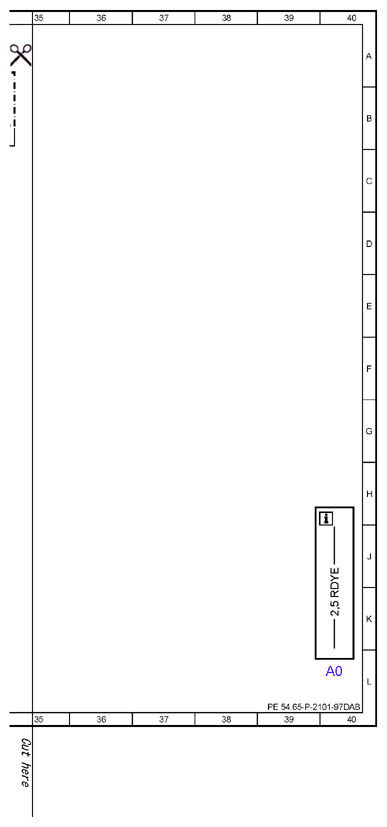

| A0 | Color code key | 40L |
| A44/3 | Rear parking system warning indicator | 6L |
| A44/3 | Rear parking system warning indicator | 8L |
| A44/4 | Instrument panel parking system warning indicator | 34L |
| B8/1 | Outer left front parking system distance sensor | 23L |
| B8/10 | Outer left rear parking system distance sensor | 15L |
| B8/11 | Center left rear parking system distance sensor | 17L |
| B8/12 | Center right rear parking system distance sensor | 18L |
| B8/2 | Center left front parking system distance sensor | 25L |
| B8/3 | Inner left front parking system distance sensor | 27L |
| B8/4 | Inner right front parking system distance sensor | 28L |
| B8/5 | Center right front parking system distance sensor | 30L |
| B8/6 | Outer right front parking system distance sensor | 32L |
| B8/7 | Outer right rear parking system distance sensor | 11L |
| B8/8 | Inner right rear parking system distance sensor | 12L |
| B8/9 | Inner left rear parking system distance sensor | 14L |
| CAN E2 | Chassis CAN 2 | 21K |
| Code 271 | Autonomous intervention by the brake system / pedestrian protection | 22C |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f80 | Fuse 80 | 2L |

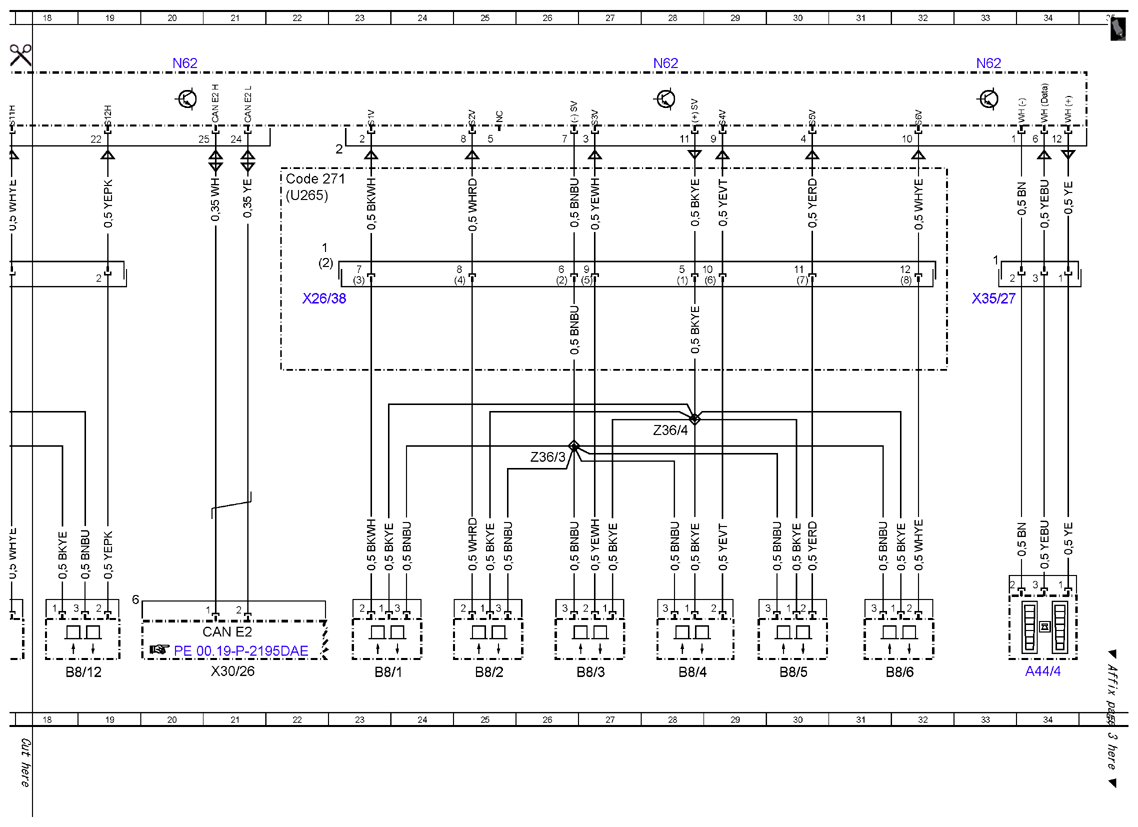

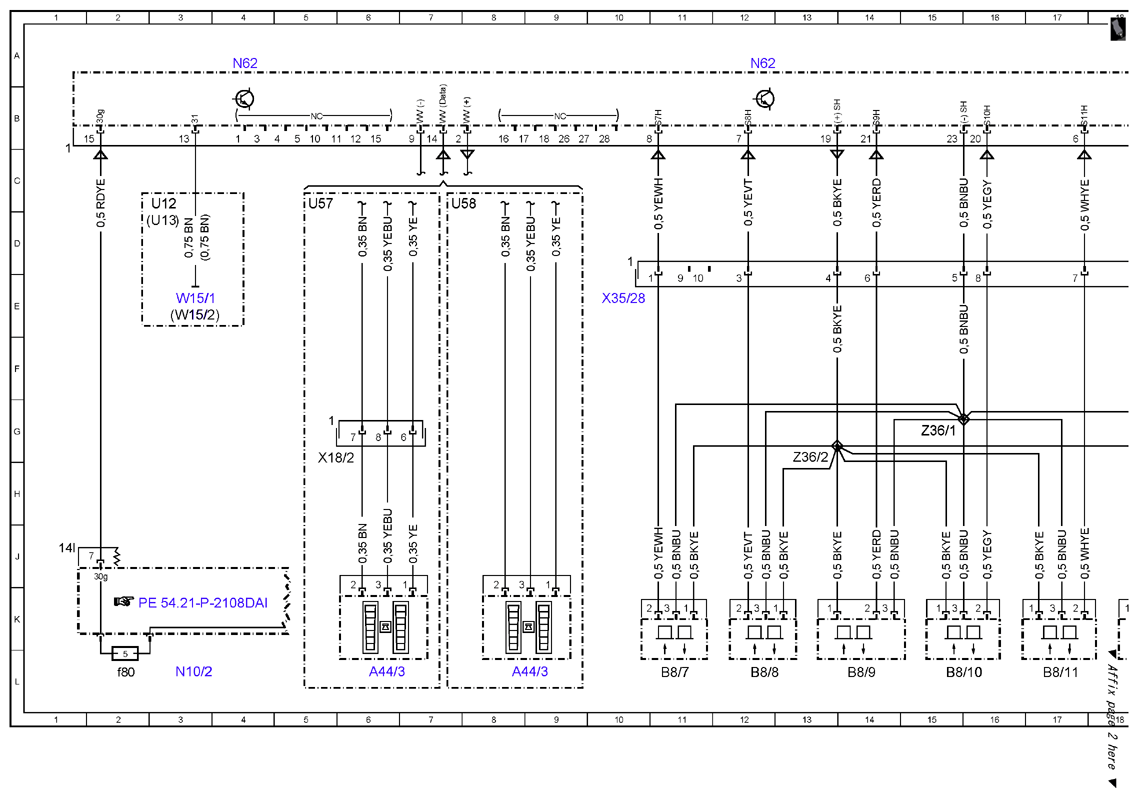

| N62 | Parking system control unit | 20A |
| N62 | Parking system control unit | 4A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 28A |
| N62 | Parking system control unit | 33A |
| U12 | Valid for left-hand drive vehicles | 3C |
| U13 | Valid for right-hand drive vehicles | 3D |
| U265 | Not valid for pedestrian protection | 22C |
| U57 | Valid for model 212.2 | 5C |
| U58 | Valid for model 212.0/1 | 7C |
| W15/1 | Right footwell ground point | 3E |
| W15/2 | Left footwell ground point | 3E |
| X18/2 | Electrical connector/interior roof | 5H |
| X26/38 | Front bumper and frame wiring harness electrical connector | 22E |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 21L |
| X35/27 | Instrument panel PARKTRONIC warning indicator electrical connector | 33E |
| X35/28 | Rear bumper PARKTRONIC electrical connector | 10E |
| Z36/1 | Rear PARKTRONIC sensors ground line connector sleeve | 15G |
| Z36/2 | Rear PARKTRONIC sensors positive line connector sleeve | 13G |
| Z36/3 | Front PARKTRONIC sensors ground line connector sleeve | 26G |
| Z36/4 | Front PARKTRONIC sensors positive line connector sleeve | 28G |
