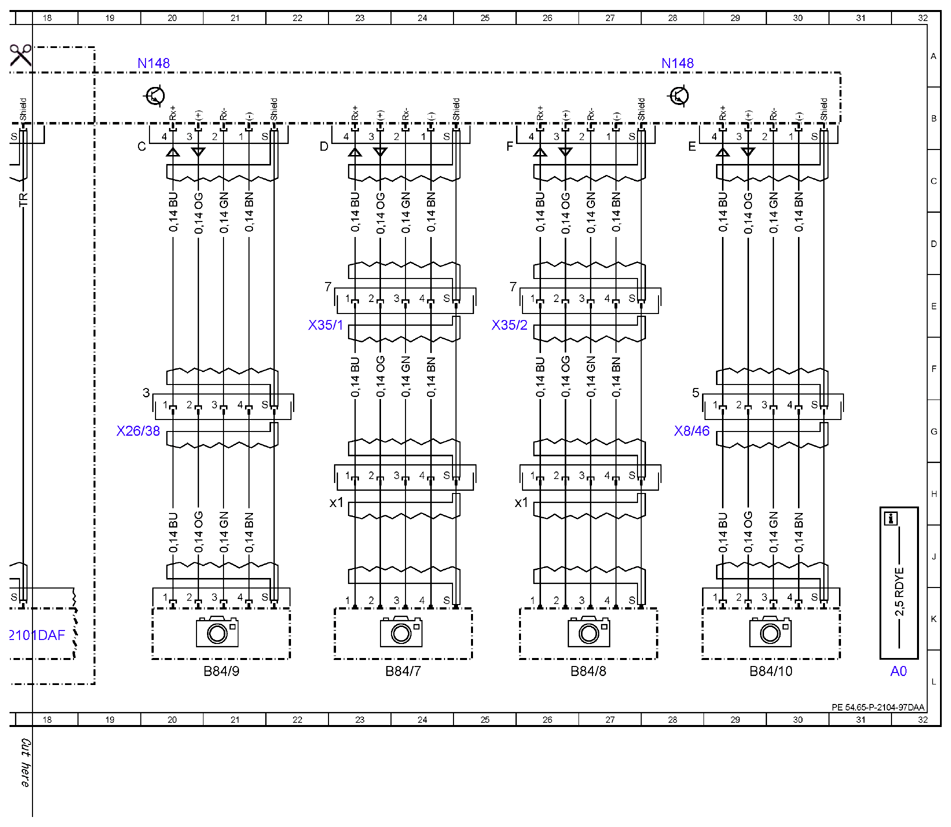

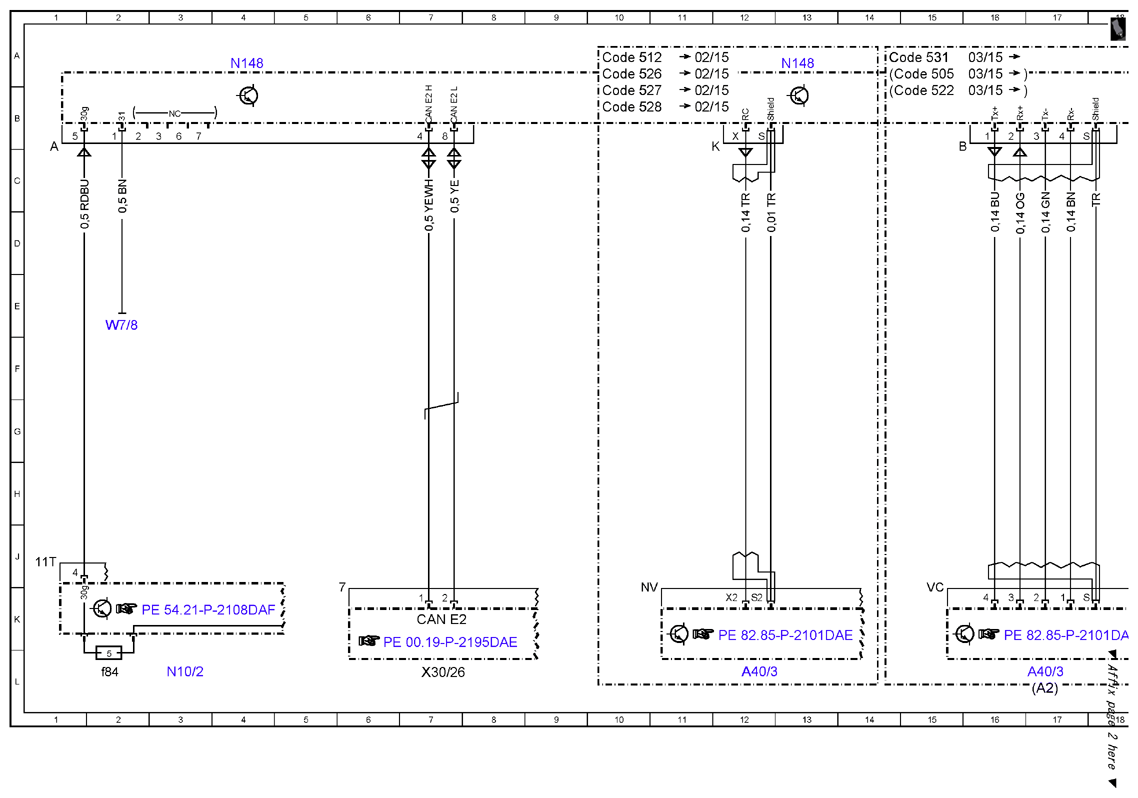

Wiring diagram for 360° camera control unit - PE54.65-P-2104-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 501 (360° camera) Control unit N148'
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2 | Radio | 17L |
| A40/3 | COMAND control unit | 12L |
| A40/3 | COMAND control unit | 17L |
| B84/10 | Rear end 360° camera | 29L |
| B84/7 | Left outside mirror 360° camera | 24L |
| B84/7x1 | Left outside mirror 360° camera electrical connector | 23H |
| B84/8 | Right outside mirror 360° camera | 27L |
| B84/8x1 | Right outside mirror 360° camera electrical connector | 26H |
| B84/9 | Front end 360° camera | 21L |
| CAN E2 | Chassis CAN 2 | 7K |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 14A |
| Code 512 | COMAND APS with DVD changer | 10A |
| Code 522 | Audio 20 radio | 14B |
| Code 526 | COMAND with single DVD drive (without navigation) | 10A |
| Code 527 | COMAND APS (with navigation) | 10B |
| Code 528 | COMAND with DVD changer | 10B |
| Code 531 | COMAND APS | 14A |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N148 | 360° camera control unit | 4A |
| N148 | 360° camera control unit | 13A |
| N148 | 360° camera control unit | 20A |
| N148 | 360° camera control unit | 28A |
| W7/8 | Right wheelhouse trunk ground point | 2E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 19G |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 7L |
| X35/1 | Left front door electrical connector | 22E |
| X35/2 | Right front door electrical connector | 25E |
| X8/46 | Right vehicle interior and tailgate electrical connector | 28G |
