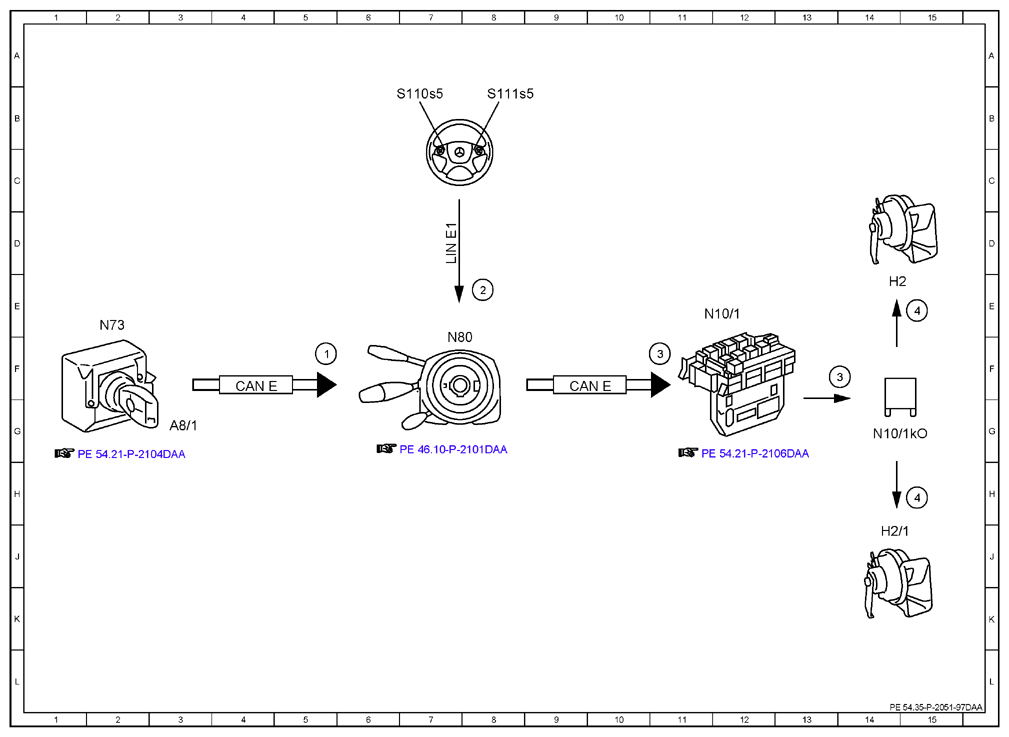

Electrical function schematic, fanfare horns - PE54.35-P-2051-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/ 2
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 2 | Fanfare horns button, status | 8E |
| 3 | Fanfare horns, request | 11F |
| 3 | Fanfare horns, request | 14F |
| 4 | Fanfare horns, actuation | 15E |
| 4 | Fanfare horns, actuation | 15H |
| A8/1 | Transmitter key | 3G |
| CAN E | Chassis CAN | 4F |
| CAN E | Chassis CAN | 9F |
| H2 | Left fanfare horn | 14E |
| H2/1 | Right fanfare horn | 14J |
| LIN E1 | Steering LIN | 7D |
| N10/1 | Front SAM control unit with fuse and relay module | 12E |
| N10/1kO | Fanfare horn relay | 14G |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 7F |
| S110s5 | Left fanfare horn system button | 6B |
| S111s5 | Right fanfare horn system button | 8B |
