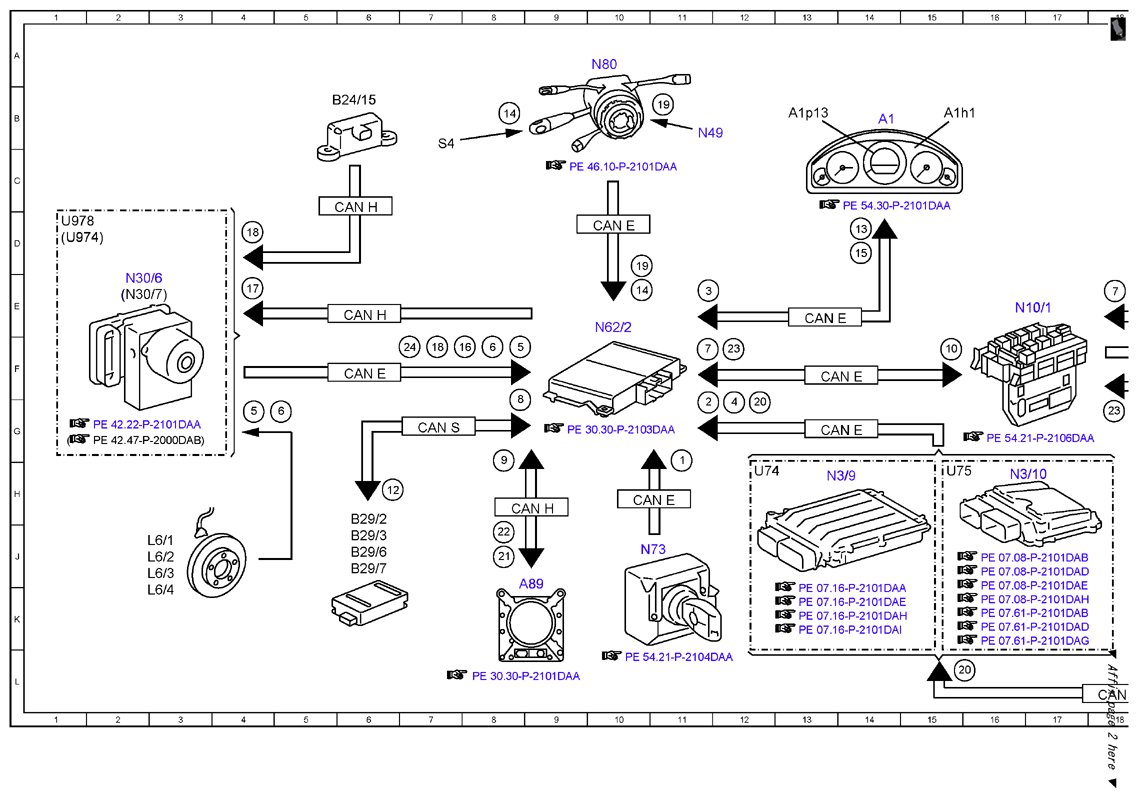

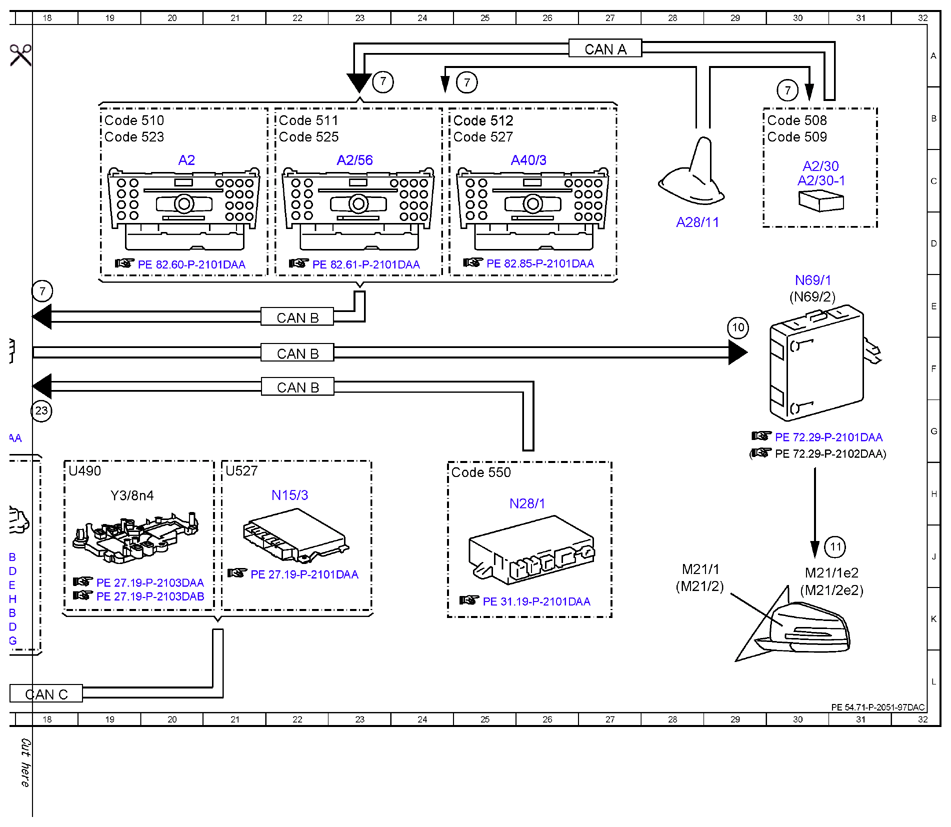

Electrical function schematic, blind spot assistant - PE54.71-P-2051-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /2 up to 28.2.13 with CODE (237) Active Blind Spot Assist as of model year 2011 /AEJ 10
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11H |
| 10 | Blind Spot Assist readiness and warning indicator, request | 15F |
| 10 | Blind Spot Assist readiness and warning indicator, request | 29E |
| 11 | Blind Spot Assist readiness and warning indicator, actuation | 31J |
| 12 | Switch off radar sensor system, request | 6H |
| 13 | Warning message issue, request | 14D |
| 14 | Combination switch, status | 8B |
| 14 | Combination switch, status | 10E |
| 15 | Warning tone, request | 14D |
| 16 | ESP®, status | 7F |
| 17 | Wheel-specific service brake braking torque, request | 4E |
| 18 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 7F |
| 18 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 4D |
| 19 | Steering angle sensor, signal | 11B |
| 19 | Steering angle sensor, signal | 10D |
| 2 | Drivetrain operational, signal | 11G |
| 20 | Shift stage, status | 12G |
| 20 | Shift stage, status | 16L |
| 21 | Long-range radar, request | 8J |
| 22 | Diagnosis, communication | 8J |
| 23 | Trailer recognition, status | 12F |
| 23 | Trailer recognition, status | 18G |
| 24 | Service brake, status | 7F |
| 3 | Blind spot assist, status | 11E |
| 4 | Engine running, signal | 12G |
| 5 | Wheel speed, signal | 8F |
| 5 | Wheel speed, signal | 4G |
| 6 | Wheel rotation direction, signal | 8F |
| 6 | Wheel rotation direction, signal | 5G |
| 7 | GPS, signal | 18E |
| 7 | GPS, signal | 25A |
| 7 | GPS, signal | 23A |
| 7 | GPS, signal | 30B |
| 7 | GPS, signal | 11F |
| 8 | Close range radar sensors, signal | 8F |
| 9 | Far range radar sensor, signal | 8H |
| A1 | Instrument cluster | 14B |
| A1h1 | Warning buzzer | 15B |
| A1p13 | Multifunction display | 13B |
| A2 | Radio | 20C |
| A2/30 | Navigation module | 30C |
| A2/30-1 | Cradle for navigation module | 30C |
| A2/56 | Radio with auto pilot system | 23C |
| A28/11 | Multifunction antenna | 28D |
| A40/3 | COMAND control unit | 25C |
| A89 | DISTRONIC electric controller unit | 9K |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 6B |
| B29/2 | DISTRONIC sensor (DTR) / left front bumper | 6H |
| B29/3 | DISTRONIC sensor (DTR) / right front bumper | 6J |
| B29/6 | Left rear bumper radar sensor | 6J |
| B29/7 | Right rear bumper radar sensor | 6J |
| CAN A | Telematics CAN | 27A |
| CAN B | Interior CAN | 22F |
| CAN B | Interior CAN | 22F |
| CAN B | Interior CAN | 22E |
| CAN C | Drive train CAN | 18L |
| CAN E | Chassis CAN | 13F |
| CAN E | Chassis CAN | 10D |
| CAN E | Chassis CAN | 6F |
| CAN E | Chassis CAN | 13E |
| CAN E | Chassis CAN | 13G |
| CAN E | Chassis CAN | 10H |
| CAN H | Vehicle dynamics CAN | 6D |
| CAN H | Vehicle dynamics CAN | 8H |
| CAN H | Vehicle dynamics CAN | 6E |
| CAN S | Sensor CAN | 7G |
| Code 508 | Navigation module preinstallation | 30B |
| Code 509 | Navigation module | 30B |
| Code 510 | Audio 20 with CD changer | 19B |
| Code 511 | Audio 50 APS incl. DVD changer | 22B |
| Code 512 | COMAND APS with DVD changer | 24B |
| Code 523 | Audio 20 radio | 19B |
| Code 525 | Audio 50 APS radio (CD) | 22B |
| Code 527 | COMAND APS (with navigation) | 24B |
| Code 550 | Trailer hitch | 24H |
| L6/1 | Left front axle rpm sensor | 2J |
| L6/2 | Right front axle rpm sensor | 2J |
| L6/3 | Left rear axle rpm sensor | 2J |
| L6/4 | Right rear axle rpm sensor | 2K |
| M21/1 | Left outside mirror | 28J |
| M21/1e2 | Left Blind Spot Assist readiness and warning indicator | 30J |
| M21/2 | Right outside mirror | 28K |
| M21/2e2 | Right Blind Spot Assist readiness and warning indicator | 30K |
| N10/1 | Front SAM control unit with fuse and relay module | 16E |
| N15/3 | Electronic transmission control unit | 22H |
| N28/1 | Trailer recognition control unit | 25H |
| N3/10 | ME-SFI [ME] control unit | 16H |
| N3/9 | CDI control unit | 13H |
| N30/6 | Regenerative braking system control unit | 2E |
| N30/7 | Premium Electronic Stability Program control unit | 2E |
| N49 | Steering angle sensor | 11B |
| N62/2 | Video and radar sensor system control unit | 10E |
| N69/1 | Left front door control unit | 30E |
| N69/2 | Right front door control unit | 30E |
| N73 | Electronic ignition switch control unit | 10J |
| N80 | Steering column module control unit | 10A |
| S4 | Combination switch | 7B |
| U490 | Valid for 7-speed automatic transmission | 18H |
| U527 | Valid for electronic transmission control | 21H |
| U74 | Valid for diesel engines | 12H |
| U75 | Valid for gasoline engines | 15H |
| U974 | Not valid for full hybrid drive | 1D |
| U978 | Valid for full hybrid drive | 1D |
| Y3/8n4 | Fully integrated transmission control unit | 19H |
