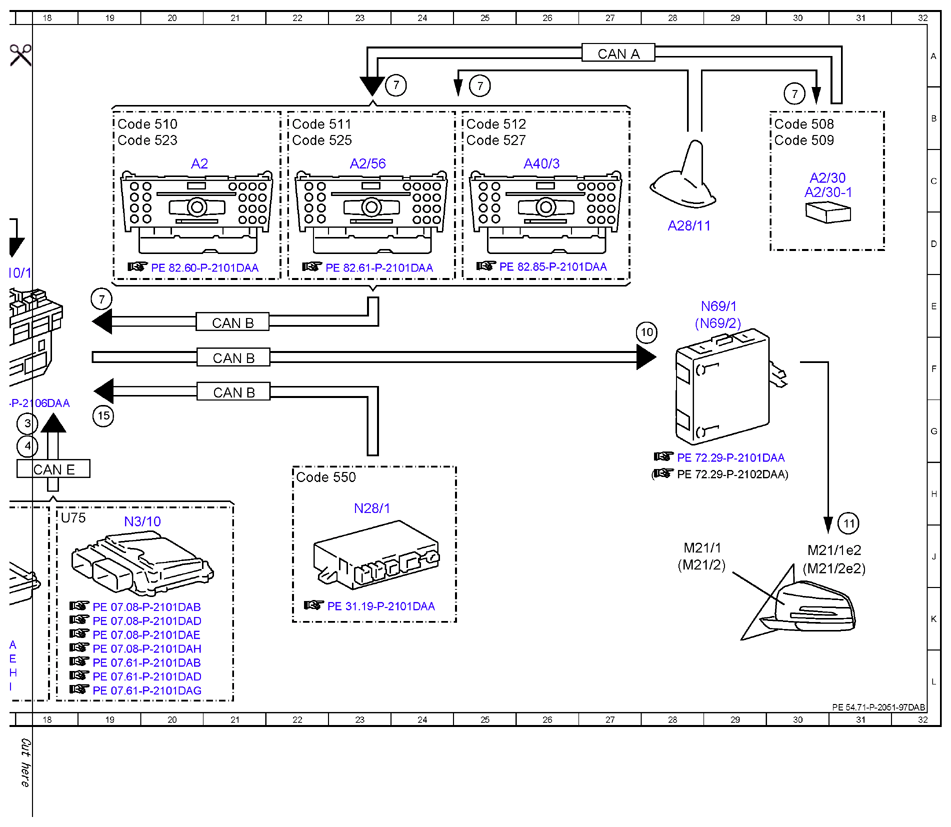

Electrical function schematic, blind spot assistant - PE54.71-P-2051-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /2 up to 28.2.13 with CODE (234) Blind Spot Assist as of model year 2011 /AEJ 10
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 16G |
| 1 | Circuit 15, status | 10J |
| 1 | Circuit 15, status | 6J |
| 10 | Blind Spot Assist readiness and warning indicator, request | 16F |
| 10 | Blind Spot Assist readiness and warning indicator, request | 28F |
| 11 | Blind Spot Assist readiness and warning indicator, actuation | 31J |
| 12 | Warning message issue, request | 15C |
| 12 | Warning message issue, request | 15F |
| 13 | Combination switch, status | 8B |
| 13 | Combination switch, status | 16D |
| 13 | Combination switch, status | 7F |
| 13 | Combination switch, status | 12G |
| 14 | Warning tone, request | 15C |
| 14 | Warning tone, request | 15F |
| 15 | Trailer recognition, status | 12G |
| 15 | Trailer recognition, status | 7F |
| 15 | Trailer recognition, status | 19G |
| 2 | Blind spot assist, status | 17D |
| 2 | Blind spot assist, status | 10H |
| 2 | Blind spot assist, status | 6H |
| 3 | Engine running, signal | 18G |
| 3 | Engine running, signal | 10H |
| 3 | Engine running, signal | 6H |
| 4 | Drivetrain operational, signal | 10G |
| 4 | Drivetrain operational, signal | 18G |
| 4 | Drivetrain operational, signal | 6G |
| 5 | Wheel speed, signal | 16E |
| 5 | Wheel speed, signal | 4D |
| 5 | Wheel speed, signal | 6G |
| 5 | Wheel speed, signal | 10G |
| 6 | Wheel rotation direction, signal | 11G |
| 6 | Wheel rotation direction, signal | 15E |
| 6 | Wheel rotation direction, signal | 5D |
| 6 | Wheel rotation direction, signal | 6G |
| 7 | GPS, signal | 19E |
| 7 | GPS, signal | 25B |
| 7 | GPS, signal | 11G |
| 7 | GPS, signal | 6F |
| 7 | GPS, signal | 24B |
| 7 | GPS, signal | 30B |
| 8 | Radar sensor (slave), status | 9J |
| 9 | Blind Spot Assist warning output, request | 9J |
| A1 | Instrument cluster | 14A |
| A1h1 | Warning buzzer | 16A |
| A1p13 | Multifunction display | 13A |
| A2 | Radio | 20C |
| A2/30 | Navigation module | 30C |
| A2/30-1 | Cradle for navigation module | 30C |
| A2/56 | Radio with auto pilot system | 23C |
| A28/11 | Multifunction antenna | 28D |
| A40/3 | COMAND control unit | 26C |
| B29/4 | Left rear bumper intelligent radar sensor | 6J |
| B29/5 | Right rear bumper intelligent radar sensor | 10J |
| CAN A | Telematics CAN | 27A |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 21E |
| CAN B | Interior CAN | 21F |
| CAN E | Chassis CAN | 12E |
| CAN E | Chassis CAN | 18H |
| CAN E | Chassis CAN | 12E |
| CAN E | Chassis CAN | 13G |
| CAN E | Chassis CAN | 14C |
| CAN G | Front end CAN | 13G |
| CAN G | Front end CAN | 12F |
| CAN G | Front end CAN | 8K |
| Code 508 | Navigation module preinstallation | 30B |
| Code 509 | Navigation module | 30B |
| Code 510 | Audio 20 with CD changer | 19B |
| Code 511 | Audio 50 APS incl. DVD changer | 22B |
| Code 512 | COMAND APS with DVD changer | 25B |
| Code 523 | Audio 20 radio | 19B |
| Code 525 | Audio 50 APS radio (CD) | 22B |
| Code 527 | COMAND APS (with navigation) | 25B |
| Code 550 | Trailer hitch | 22H |
| L6/1 | Left front axle rpm sensor | 5C |
| L6/2 | Right front axle rpm sensor | 5C |
| L6/3 | Left rear axle rpm sensor | 5D |
| L6/4 | Right rear axle rpm sensor | 5D |
| M21/1 | Left outside mirror | 28J |
| M21/1e2 | Left Blind Spot Assist readiness and warning indicator | 30J |
| M21/2 | Right outside mirror | 28J |
| M21/2e2 | Right Blind Spot Assist readiness and warning indicator | 30J |
| N10/1 | Front SAM control unit with fuse and relay module | 17E |
| N28/1 | Trailer recognition control unit | 23H |
| N3/10 | ME-SFI [ME] control unit | 19J |
| N3/9 | CDI control unit | 16J |
| N30/4 | Electronic Stability Program control unit | 3C |
| N30/6 | Regenerative braking system control unit | 2E |
| N30/7 | Premium Electronic Stability Program control unit | 3C |
| N69/1 | Left front door control unit | 29E |
| N69/2 | Right front door control unit | 29E |
| N73 | Electronic ignition switch control unit | 12J |
| N80 | Steering column module control unit | 10A |
| S4 | Combination switch | 7B |
| U165 | Valid for AMG | 1C |
| U74 | Valid for diesel engines | 15H |
| U75 | Valid for gasoline engines | 18H |
| U974 | Not valid for full hybrid drive | 1C |
| U974 | Not valid for full hybrid drive | 1C |
| U978 | Valid for full hybrid drive | 1E |
| U986 | Not valid for AMG | 1C |
