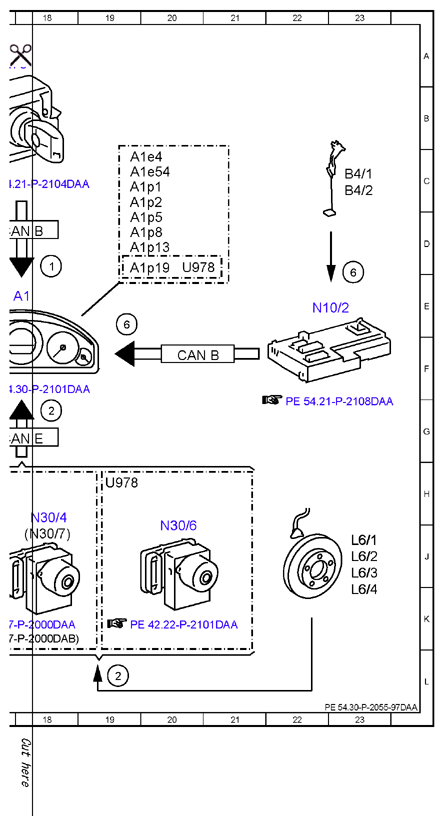

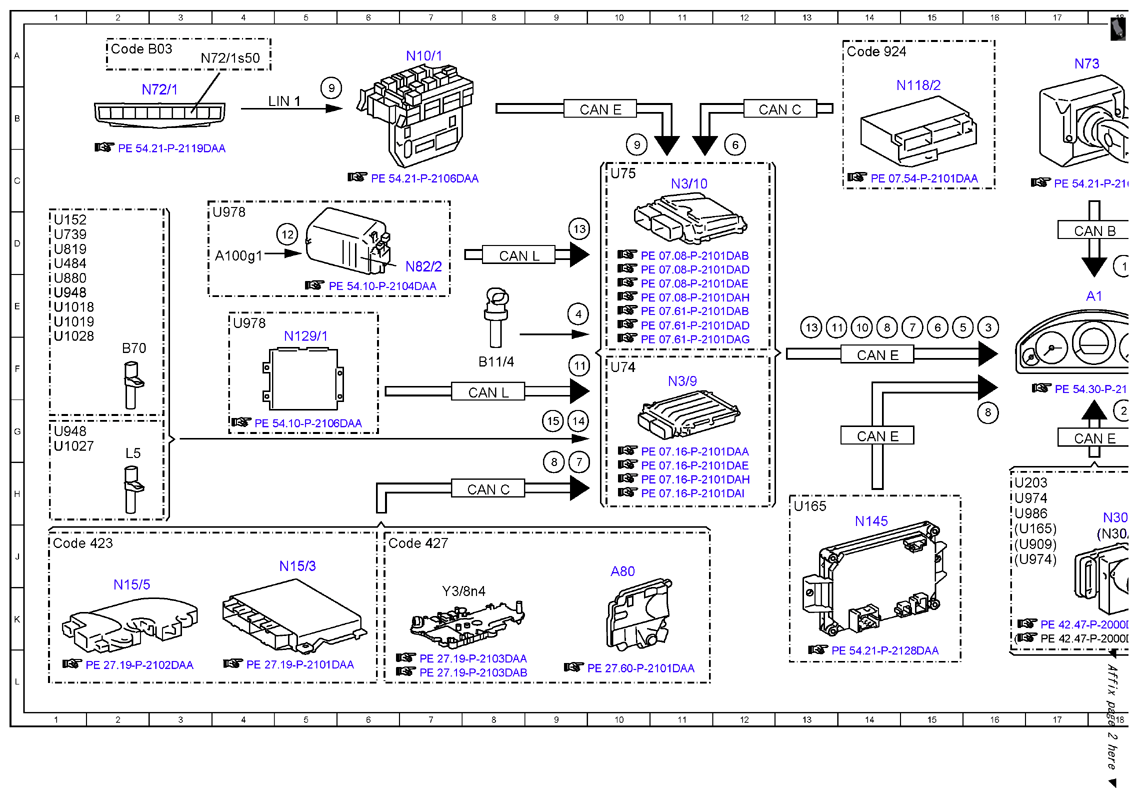

Electrical function schematic of instrument cluster, operating condition display - PE54.30-P-2055-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 18D |
| 10 | ECO start/stop function, status | 14E |
| 11 | Power electronics, status | 13E |
| 11 | Power electronics, status | 9F |
| 12 | High-voltage battery, status | 5D |
| 13 | Battery management, status | 13E |
| 13 | Battery management, status | 9D |
| 14 | Crankshaft Hall sensor, signal | 9G |
| 15 | Crankshaft position sensor, signal | 9G |
| 2 | Wheel speed, signal | 18G |
| 2 | Wheel speed, signal | 19L |
| 3 | Engine speed, signal | 16E |
| 4 | Coolant temperature sensor, signal | 9E |
| 5 | Coolant temperature, signal | 15E |
| 6 | Fuel level, signal | 19E |
| 6 | Fuel level, signal | 23E |
| 6 | Fuel level, signal | 12B |
| 6 | Fuel level, signal | 15E |
| 7 | Gear stage, signal | 9H |
| 7 | Gear stage, signal | 15E |
| 8 | Transmission mode, signal | 9H |
| 8 | Transmission mode, signal | 14E |
| 8 | Transmission mode, signal | 16G |
| 9 | ECO start/stop function button, status | 10B |
| A1 | Instrument cluster | 17E |
| A100g1 | High-voltage battery | 4D |
| A1e4 | Fuel reserve indicator lamp | 19C |
| A1e54 | Coolant temperature warning lamp | 19C |
| A1p1 | Coolant temperature gauge | 19C |
| A1p13 | Multifunction display | 19D |
| A1p19 | Power indicator display | 19D |
| A1p2 | Fuel level indicator | 19C |
| A1p5 | Tachometer | 19D |
| A1p8 | Speedometer | 19D |
| A80 | Intelligent servo module for DIRECT SELECT | 10J |
| B11/4 | Coolant temperature sensor | 8F |
| B4/1 | Left fuel level indicator sensor | 23C |
| B4/2 | Right fuel level indicator sensor | 23C |
| B70 | Crankshaft Hall sensor | 2F |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 17D |
| CAN C | Drive train CAN | 8H |
| CAN C | Drive train CAN | 12B |
| CAN E | Chassis CAN | 17G |
| CAN E | Chassis CAN | 14F |
| CAN E | Chassis CAN | 10B |
| CAN E | Chassis CAN | 14G |
| CAN L | Hybrid CAN | 8F |
| CAN L | Hybrid CAN | 8D |
| Code 423 | 5-speed automatic transmission | 1J |
| Code 427 | 7-speed automatic transmission | 6J |
| Code 924 | Bivalent natural gas drive | 14A |
| Code B03 | ECO start/stop function | 2A |
| L5 | Crankshaft position sensor | 2G |
| L6/1 | Left front axle rpm sensor | 23J |
| L6/2 | Right front axle rpm sensor | 23J |
| L6/3 | Left rear axle rpm sensor | 23J |
| L6/4 | Right rear axle rpm sensor | 23K |
| LIN 1 | Instrument panel LIN | 5B |
| N10/1 | Front SAM control unit with fuse and relay module | 7A |
| N10/2 | Rear SAM control unit with fuse and relay module | 22E |
| N118/2 | CNG control unit | 15B |
| N129/1 | Power electronics control unit | 5F |
| N145 | Transmission mode control unit | 14J |
| N15/3 | Electronic transmission control unit | 5J |
| N15/5 | Electronic selector lever module control unit | 2K |
| N3/10 | ME-SFI [ME] control unit | 11C |
| N3/9 | CDI control unit | 11F |
| N30/4 | Electronic Stability Program control unit | 18H |
| N30/6 | Regenerative braking system control unit | 20J |
| N30/7 | Premium Electronic Stability Program control unit | 18J |
| N72/1 | Upper control panel control unit | 2B |
| N72/1s50 | ECO start/stop function button | 3A |
| N73 | Electronic ignition switch control unit | 17A |
| N82/2 | Battery management system control unit | 7D |
| U1018 | Valid for gasoline engine 276 | 1E |
| U1019 | Valid for gasoline engine 278 | 1E |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 1G |
| U1028 | Valid for engine 157 | 1F |
| U152 | Valid for gasoline engine 156 | 1D |
| U165 | Valid for AMG | 13H |
| U165 | Valid for AMG | 16J |
| U203 | Valid without DISTRONIC PLUS | 16H |
| U484 | Valid for gasoline engine 273 | 1D |
| U739 | Valid for gasoline engine 271 DE | 1D |
| U74 | Valid for diesel engines | 10F |
| U75 | Valid for gasoline engines | 10C |
| U819 | Valid for gasoline engine 272 | 1D |
| U880 | Valid for diesel engine 642 | 1E |
| U909 | Valid for DISTRONIC PLUS | 16J |
| U948 | Valid for diesel engine 651 | 1G |
| U948 | Valid for diesel engine 651 | 1E |
| U974 | Not valid for full hybrid drive | 16H |
| U974 | Not valid for full hybrid drive | 16J |
| U978 | Valid for full hybrid drive | 19H |
| U978 | Valid for full hybrid drive | 4E |
| U978 | Valid for full hybrid drive | 20D |
| U978 | Valid for full hybrid drive | 4D |
| U986 | Not valid for AMG | 16H |
| Y3/8n4 | Fully integrated transmission control unit | 7K |
