Blind Spot Assist wiring diagram - PE54.71-P-2100-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

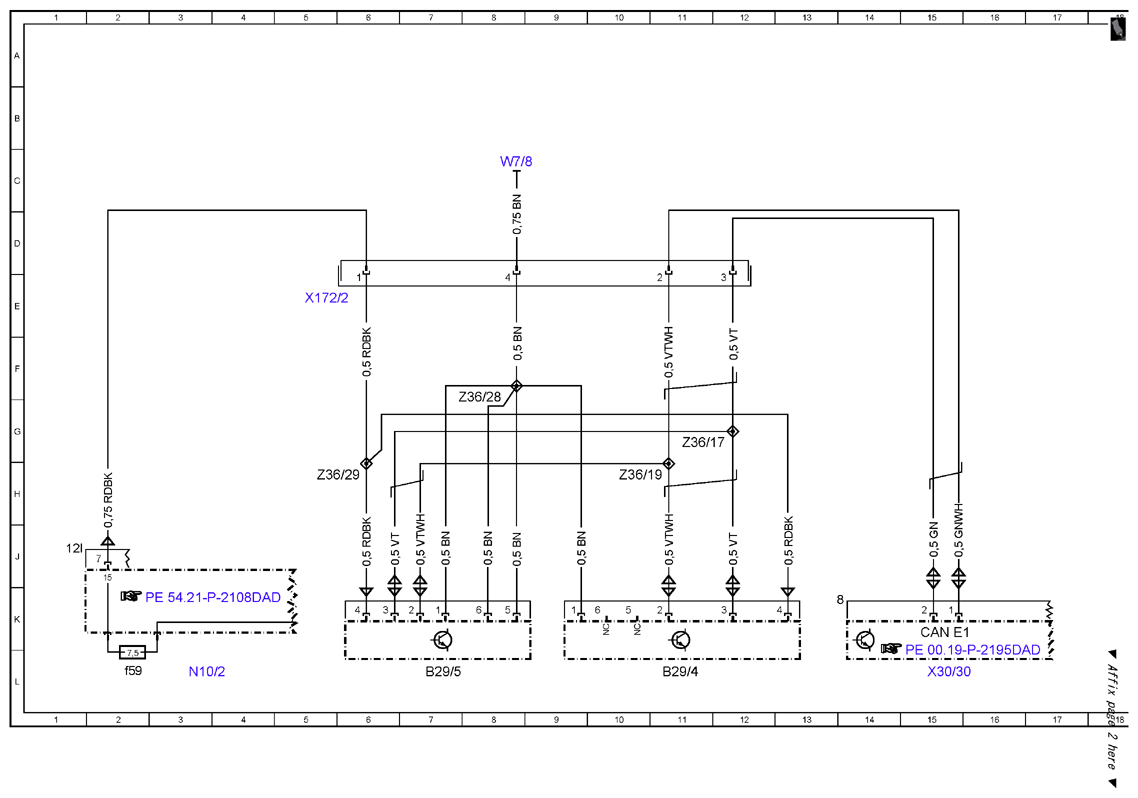

MODEL 212 as of model year 2014 with CODE 234 (Blind Spot Monitoring) B29/5, B29/6
| Code: | Designation: | Position: |
|---|---|---|

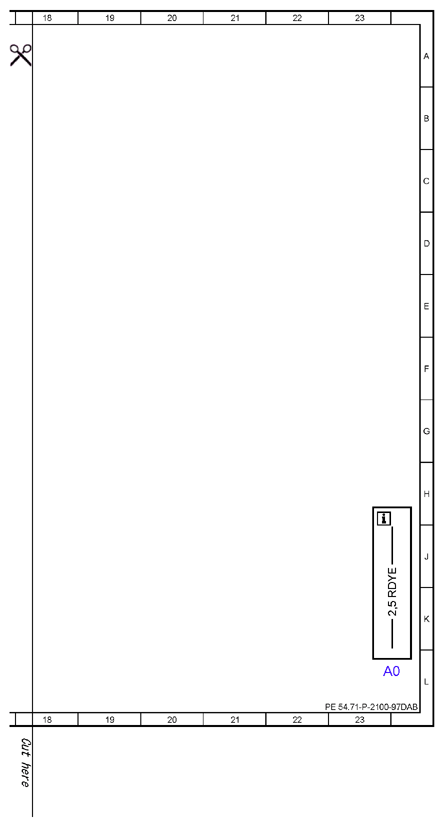

| A0 | Color code key | 23L |
| B29/4 | Left rear bumper intelligent radar sensor | 11L |
| B29/5 | Right rear bumper intelligent radar sensor | 7L |
| CAN E1 | Chassis CAN 1 | 15K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f59 | Fuse 59 | 2L |
| W7/8 | Right wheelhouse trunk ground point | 8C |
| X172/2 | Rear bumper radar sensors electrical connector | 5E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 15L |
| Z36/17 | Rear sensor CAN connector sleeve | 11G |
| Z36/19 | Rear sensor CAN connector sleeve | 10H |
| Z36/28 | Rear radar sensors ground line connector sleeve | 8G |
| Z36/29 | Rear radar sensors positive line connector sleeve | 6H |
