Remove/install contact carriers for interlock line - AR08.10-P-0013EH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 724.2

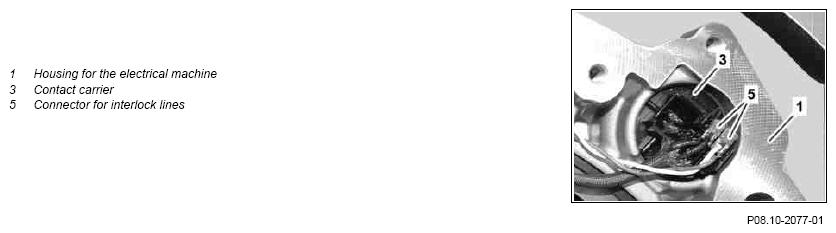

Fig 1: Contact Carriers For Interlock Line Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

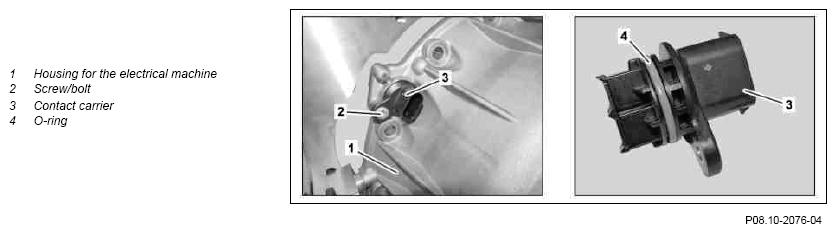

Fig 2: Contact Carriers For Interlock Line Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove intermediate housing	Cleanliness is essential for all work on the transmission. Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. For cleaning, do not use lint-free cleaning cloth. Chamois leathers are the most suitable.	AR27.40-P-0500EH
2	Unclip connectors for interlock lines (5) at the same time out of the contact carrier	The connectors for interlock lines (5) cannot be unclipped individually. Check interlock lines through visual inspection for damage; replace if necessary.
3	Remove screw/bolt (2)	Bolt, contact carrier for LV connection	*BA27.10-P-1005-04G
4	Unclip contact carrier (3) from electrical machine housing (1) and remove	Replace O-ring (4).
5	Install in the reverse order

COMPLETE AUTOMATIC TRANSMISSION

Number	Designation		TRANSMISSION 724.2
BA27.10-P-1005-04G	Bolt, contact carrier for LV connection	Nm	9
