Remove fuel distributor with injection valves - AR07.03-P-1450MCU
ENGINE 132.910 in MODEL 451.3/4
| Remove/install | |||
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | Remove interior flap above engine | AR88.40-P-1100-03MCC | |

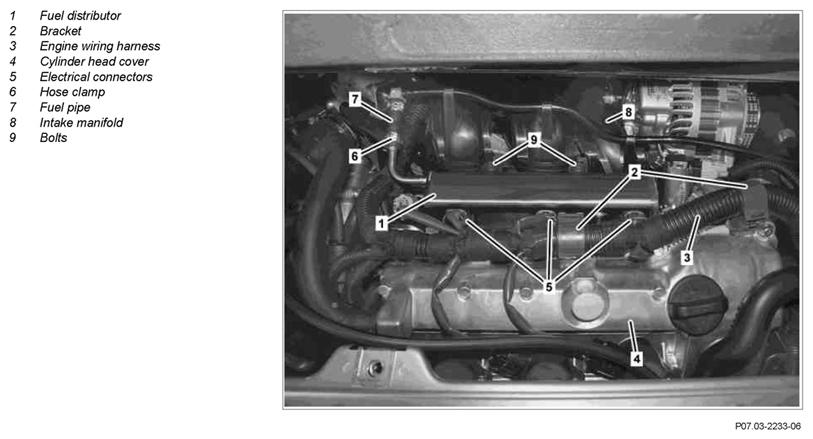

| 2 | Unlock and remove holder (2) for engine wiring harness (3) on mounts on cylinder head cover (4) | ||
| 3 | Disconnect electrical connectors (5) | ||
| 4 | Detach clamp (6) and remove fuel line (7) from fuel distributor (1) | Use suitable plugs to seal the openings. |
|
| 5 | Remove bolts (9) for fuel distributor (1) on intake manifold (8) | *BA07.52-P-1001-01D | |
| 6 | Remove fuel distributor (1) together with fuel injection valves | ||
| 7 | Remove fuel injection valves | AR07.03-P-6522MCU | |
| 8 | Install in the reverse order | ||
| 9 | Read out fault memory, erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Conduct engine test run and check for leaktightness of fuel system in the area of the fuel distributor (1) |
FUEL DISTRIBUTOR
| Number | Designation | Engine 132.9 | |
|---|---|---|---|
| BA07.52-P-1001-01D | Bolt, fuel distributor to intake manifold | Nm | 9 |
