Notes on coupling rocker arm - AH05.20-P-3000-01AV
ENGINE 113.960 with CODE 479 (AMG RIDE CONTROL sports suspension)
- Rocker arm spindle (inlet)
- Rocker arm spindle (Outlet)
- Shift rocker arm
- Valve lever
- Roller lever The rocker arm spindles (1, 2) are assigned to the switch toggle (3) using code numbers stamped onto the components.

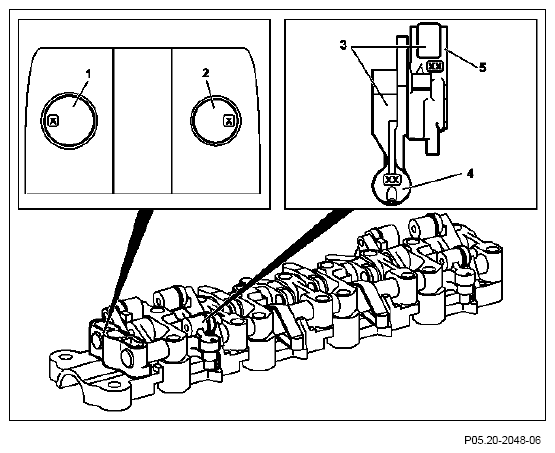

The code numbers for the rocker arm spindles (1, 2) are located on the front side of each rocker arm spindle. (See Fig 1)
The code numbers for the switch toggle (3) are located once on the valve lever (4) and once on the roller lever (5). (See Fig 1)
The valve lever (4) and roller lever (5) - once assembled - must have the same code number.
