Marking on camshaft bearing caps - AH05.20-P-6992-04HE
ENGINE 629 in MODEL 164, 211, 221
ENGINE 628.963 in MODEL 163.128
ENGINE 628.960 in MODEL 220.028/128
ENGINE 628.962 in MODEL 463.309/332/333
ENGINE 628.961 in MODEL 211.028
Do not mix up camshaft bearing caps when installing. They must be always fitted at the same position again.
Right cylinder head
- Intake camshaft (E), starting at camshaft sprocket, with E1 up to E5.
- Exhaust camshaft (A), starting at camshaft sprocket, with A1 up to A5.

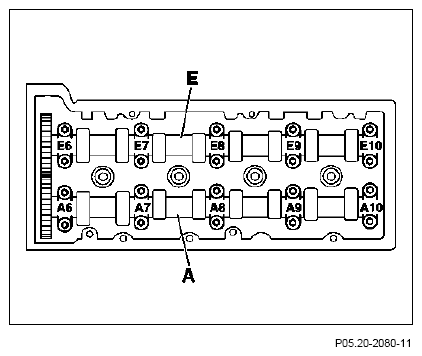

Left cylinder head
- Intake camshaft (E), starting at camshaft sprocket, with E6 up to E10.
- Exhaust camshaft (A), starting on camshaft sprocket, with A6 to A10.
