Marking on camshaft bearing caps - AH05.20-P-6992-04HD
ENGINE 613, 648

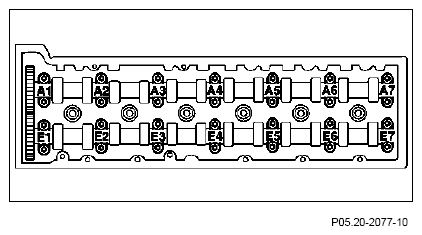

Camshaft bearing caps are marked as follows:
On the left exhaust camshaft starting from the front with E1 to E7.
On the right exhaust camshaft starting from the front with A1 to A7.
The camshaft bearing caps must be installed in the same position again.
Otherwise dimensional accuracy will not be ensured.
