General notes on timing, markings - AH05.10-P-1000-01A

ENGINE 112/951/976, 113

IMPORTANT

Shown on engine 112

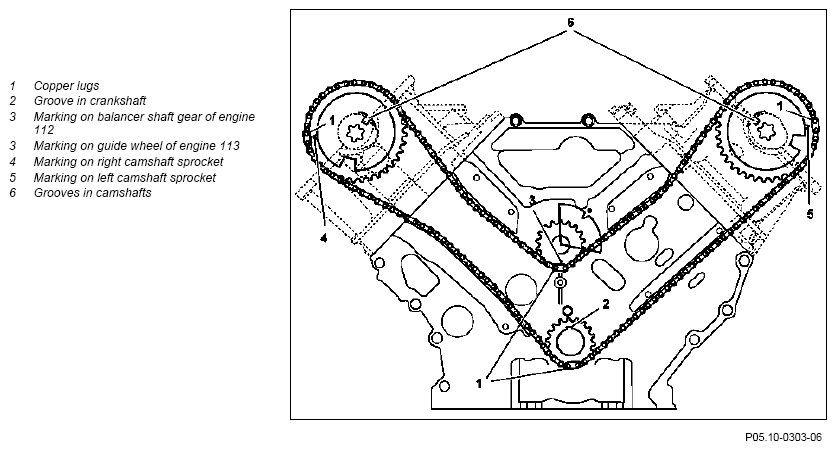

Fig 1: Identifying Marking On Balancer Shaft Gear Of Engine - Shown On Engine 112
G10037395Courtesy of MERCEDES-BENZ USA

IMPORTANT The four copper lugs (1) of the timing chain make it easier to mount the timing chain. Each copper lug (1) must line up with one of the markings.

IMPORTANT Paths of unequal-lengths for the timing chain mean that the engine has to be cranked up to 14 times before the copper lugs (1) line up with the markings.
