Set valve clearance - AP05.30-P-0560MCC

ENGINE 132.9 in MODEL 451.3/4

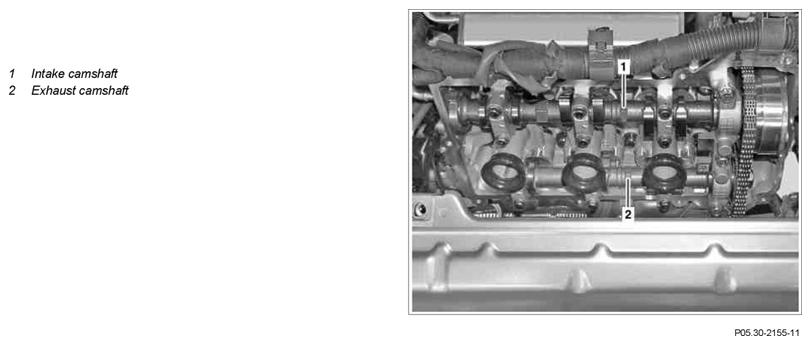

Fig 1: Identifying Intake And Exhaust Camshaft
G10977930Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove cylinder head cover
REFER TO TESTING & REPAIR   With CODE 494 (USA version) AR01.20-P-5014MCU
REFER TO TESTING & REPAIR   Except CODE 494 (USA version) AR01.20-P-5014MCC
2 Detach right rear wheel
REFER TO TESTING & REPAIR   With CODE 494 (USA version) AR40.10-P-1100MCU
REFER TO TESTING & REPAIR   Except CODE 494 (USA version) AR40.10-P-1100MCC
INSPECT Check
3 Turn engine to top dead center position
REFER TO TESTING & REPAIR   With CODE 494 (USA version) AR01.10-P-1000-01MCU
REFER TO TESTING & REPAIR   Except CODE 494 (USA version) AR01.10-P-1000-01MCC
4 Lower vehicle with lifting platform
5 Check whether the valves of the 1st cylinder are relieved of load, if necessary continue turning engine one revolution in direction of engine rotation at the central bolt of the crankshaft pulley
6 Check valve clearance of the intake valves of the 1st and 2nd cylinder as well as the exhaust valves of the 1st and 3rd cylinder IMPORTANT It must be possible to insert the feeler gauge making smooth contact all round between the cam of the intake camshaft (1) or exhaust camshaft (2) and the valve tappet, if necessary determine and note the deviation.
    Valve clearance for intake valve *BE05.30-P-1001-06C
    Valve clearance for exhaust valve *BE05.30-P-1002-06C
    SPECIAL TOOL Feeler gauge Fig 2
7 Crank engine by center bolt of crankshaft belt pulley by a further 1800 in the direction of engine rotation
8 Check valve clearance of exhaust valve of 2nd cylinder as well as the intake valve of the 3rd cylinder IMPORTANT It must be possible to insert the feeler gauge making smooth contact all round between the cam of the intake camshaft (1) or exhaust camshaft (2) and the valve tappet, if necessary determine and note the deviation.
    Valve clearance for intake valve *BE05.30-P-1001-06C
    Valve clearance for exhaust valve *BE05.30-P-1002-06C
    SPECIAL TOOL Feeler gauge Fig 2
  Adjust
9 Remove valve tappet of the corresponding inlet or exhaust valve
REFER TO TESTING & REPAIR   With CODE 494 (USA version) AR05.00-P-2310MCU
REFER TO TESTING & REPAIR   Except CODE 494 (USA version) AR05.00-P-2310MCC
10 Select valve tappet of appropriate thickness and install
REFER TO TESTING & REPAIR   With CODE 494 (USA version) AR05.00-P-2310MCU
REFER TO TESTING & REPAIR   Except CODE 494 (USA version)
IMPORTANT The sum of the thickness of the valve tappet removed and the tolerance deviation of the valve clearance gives the thickness of the valve tappet to be installed. The dimension for the thickness of the valve tappet is located on its underside.
AR05.00-P-2310MCC
11 Recheck valve clearance and adjust if necessary
INSTALLING Install
12 Attach right rear wheel
REFER TO TESTING & REPAIR   With CODE 494 (USA version) AR40.10-P-1100MCU
REFER TO TESTING & REPAIR   Except CODE 494 (USA version) AR40.10-P-1100MCC
13 Install cylinder head cover
REFER TO TESTING & REPAIR   With CODE 494 (USA version) AR01.20-P-5014MCU
REFER TO TESTING & REPAIR   Except CODE 494 (USA version) AR01.20-P-5014MCC
CHECK VALUES OF VALVE CLEARANCE

Number Designation ENGINE 132.9
BE05.30-P-1001-06C Valve clearance for intake valve With engine cold (approx. 20 °C) mm 0, 18...0, 26
CHECK VALUES OF VALVE CLEARANCE

Number Designation ENGINE 132.9
BE05.30-P-1002-06C Valve clearance for exhaust valve With engine cold (approx. 20 °C) mm 0, 26...0, 34
Fig 2: Identifying Feeler Gauge (454 589 00 23 00)
G10977931Courtesy of MERCEDES-BENZ USA
