Interference fit of crankshaft bearing cap - AH03.20-P-4351-02MM
ENGINE 152, 157, 276, 278

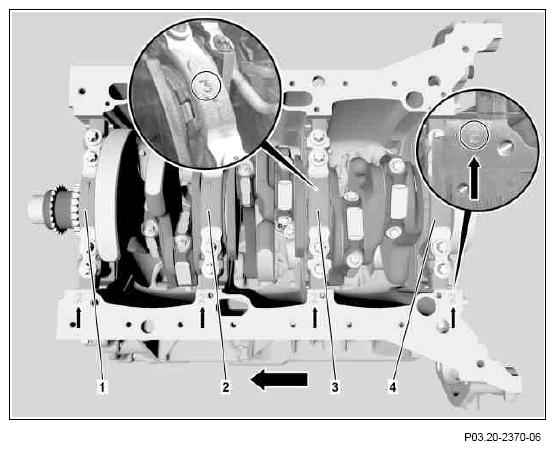

Engine 276
- The crankshaft bearing caps (1, 2, 3, 4) are machined together with the cylinder crankcase and must not be interchanged.
- The crankshaft bearing caps (1, 2, 3, 4) are fitted on the side in the cylinder crankcase and must be installed in the correct position.
- The crankshaft bearing caps (1, 2, 3, 4) are numbered consecutively beginning with the first crankshaft bearing cap (1) at the front.
- If the installation position is correct, the numbers on the crankshaft bearing caps (1, 2, 3, 4) can be read in the direction of travel (wide arrow).
Engine 152, 157, 278, shown on engine 278
