Remove/install piston rings - AR03.10-P-7311MCC

ENGINES 132.9 in MODEL 451.3/4

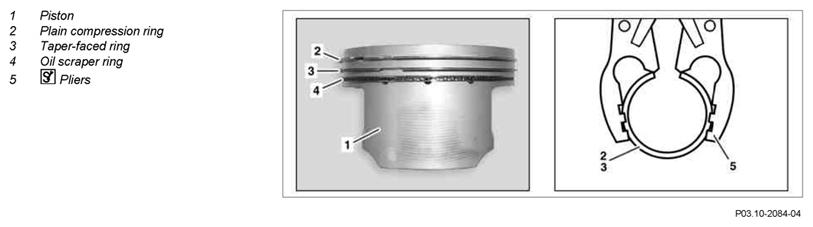

Fig 1: Identifying Piston Rings Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

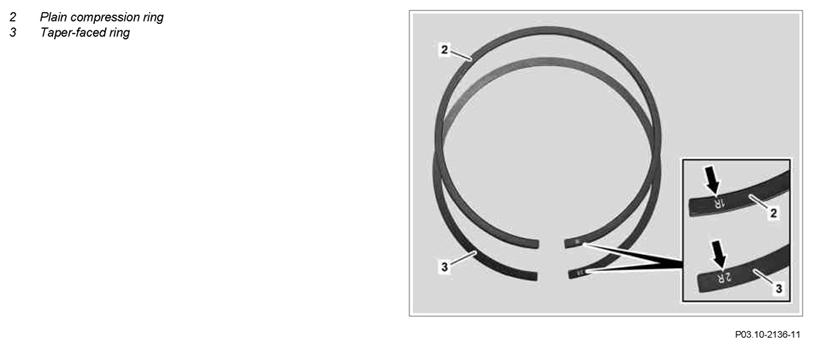

Fig 2: Identifying Piston Rings Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove piston (1)		AR03.10-P-7021MCC
2	Remove plain compression ring (2 and taper-faced ring (3) from piston (1) using the pliers (5)	Pliers	Fig 4
3	Remove three-piece oil ring (4) by hand from piston (1)
4	Clean piston (1) and check for damage	Replace piston (1) if necessary.
5	Measure side clearance of the plain compression ring (2) and the taper-faced ring (3)	Replace plain compression ring (2), taper-faced ring (3) and oil scraper ring (4) together with the piston (1) if necessary.	AR03.10-P-7311-01MCC
			*BE03.10-P-1001-05H
6	Measure end gap of the plain compression ring (2) of the taper-faced ring (3) and the upper and lower rings of the oil scraper ring (4)	Also replace the plain compression ring (2), taper-faced ring (3) and oil scraper ring (4) set by set if necessary.	AR03.10-P-7311-02MCC
		Groove 1, 2	*BE03.10-P-1002-05H
		Groove 3	*BE03.10-P-1004-05H
7	Remove piston (1) from connecting rod	Only if the plain compression ring (2), taper-faced ring (3) and oil scraper ring (4) must be replaced together with the piston (1). the piston (1) and connecting rod are delivered separately.	AR03.10-P-7021-07MCC
		Assembly tool	Figure
	Install
8	Assemble piston (1) together with the connecting rod	Only if the plain compression ring (2), taper-faced ring (3) and oil scraper ring (4) were replaced together with the piston (1). the piston (1) and connecting rod are delivered separately.	AR03.10-P-7021-08MCC
		Assembly tool	Figure
9	Attach three-piece oil ring (4) by hand to the piston (1)
10	Attach plain compression ring (2 and taper-faced ring (3) to piston (1) using the pliers (5)	Observe installation position The marking (arrow) on the plain compression ring (2) and the marking (arrow) on the taper-faced ring (3) must point towards the piston crown. First attach taper-faced ring (3) then plain compression ring (2). Pliers	Fig 4
11	Install piston (1)		AR03.10-P-7021MCC

CHECK VALUES FOR PISTON RINGS

Number	Designation			Engine 132.910/930
BE03.10-P-1001-05H	Piston ring vertical clearance	Groove 1	mm	0.03 to 0.07
		Groove 2	mm	0.02 to 0.06
		max.	mm	0.1
BE03.10-P-1002-05H	Piston ring end gap	Groove 1	mm	0.15 to 0.30
		Groove 2	mm	0.15 to 0.30
		max.	mm	0.08
BE03.10-P-1004-05H	End gap for upper and lower ring of the oil scraper ring	Groove 3	mm	0.10 to 0.40
		max.	mm	1.0

Fig 3: Identifying Assembly Tool (132 589 00 35 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Pliers (450 589 14 37 00)

Courtesy of MERCEDES-BENZ USA
