Notes on the application of sealing compound to the cylinder head cover - AH01.30-P-1000-08PI

ENGINE 642

IMPORTANT The line (F) indicates the line the sealing compound is to be applied on.

IMPORTANT Sealing surfaces must be free of oil and grease. Apply sealing compound on the surface as a bead 1.5 mm (±0.5 mm) wide. The sealing compound must be applied within 10 minutes. The sealing compound bead must not be spread.

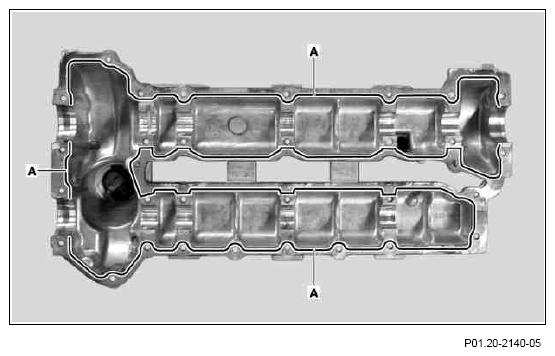

Fig 1: Identifying Cylinder Head Cover Sealant Applying Area - Engine 642
G10037259Courtesy of MERCEDES-BENZ USA
