Remove/install cover on crankcase - AR01.20-P-0100MCU

ENGINE 132.910 in MODEL 451.3/4

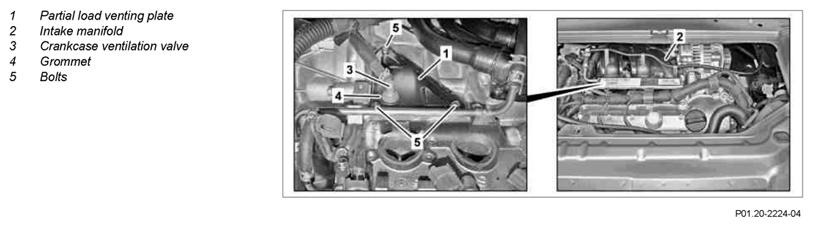

Fig 1: Identifying Crankcase Cover Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove intake manifold (2)		AR09.20-P-1310MCU
2	Remove crankcase ventilation valve (3) from grommet (4) on partial load vent plate (1)
3	Remove bolts (5)		*BA01.20-P-1003-01I
4	Detach partial load venting plate (1) from the crankcase using the knife and take off		Fig 2
		: Clean sealing surfaces to partial load venting plate (1) and on crankcase. Apply sealant to cylinder crankcase. Sealant	*BR00.45-Z-1053-01A
5	Install in the reverse order

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation		Engine 132.9
BA01.20-P-1003-01I	Bolt, partial load venting plate to crankcase	Nm	10

Fig 2: Identifying Knife (122 589 00 28 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1053-01A	Sealant	Q0000282V000000000
