Measure cylinder bores - AR01.40-P-9202MCC

ENGINES 132.9 in MODEL 451.3/4

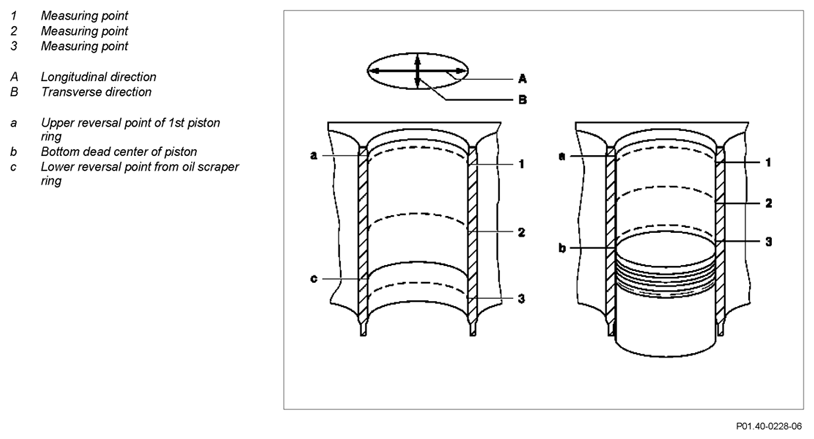

Fig 1: Measuring Cylinder Bores

G10978033

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove pistons		AR03.10-P-7021MCC
2	Clean cylinder bores for the crankcase
	Checking
3	Measure cylinder bore at the measuring points (1, 2, 3) in a longitudinal direction (A) and transverse direction (B)	Replace crankcase if the wear or damage is too high.	*BE01.40-P-1001-01P
	Install
4	Install pistons		AR03.10-P-7021MCC

TEST SPECIFICATIONS FOR CYLINDER BORE

Number	Designation			Engine 132.910/930
BE01.40-P-1001-01P	Dia. of cylinder bore	Standard size	mm	72.010 to 72.025
		Out-of-roundness (in a new condition)	mm	0.01
		Wear limit in longitudinal and transverse direction	mm	0.15
