Release and position rear drive module - AR01.00-P-3050MEV

ENGINE 780.009 in MODEL 451.391/491

Fig 1: Identifying Rear Drive Module Related Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Rear Drive Module Related Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Rear Drive Module Related Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Note on high-voltage battery		AH54.10-P-0006-01MEV
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove transmitter key and battery charger power supply plug
2	Perform enable for the high voltage on-board electrical system		AR54.10-P-1160MEV
3	Remove interior flap above engine		AR88.40-P-1100-03MCC
4	Remove fender liners in left and right fenders	Engine 780.009 in model 451.391/491 except code 494 (US version)	AR88.10-P-1400MCC
		Engine 780.009 in model 451.391/491 with code 494 (US version)	AR88.10-P-1400MCU

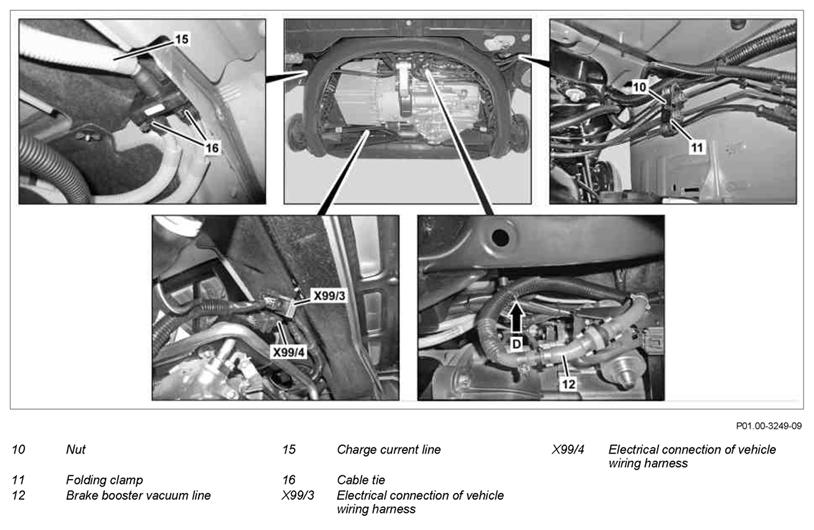

5	Remove cable ties (16) from charging current line (15)
6	Remove screw/bolts (arrows A) on left and right from rear apron
7	Unclip rear apron from brackets (arrows B) on left and right
8	Unhook ball head (8) on parking lock cable on transmission
9	Unhook counter bearing (9) on parking lock cable from transmission
10	Unscrew nuts (10) and remove folding clamp (11) with brake lines from the screw bolt
11	Remove cable tie (arrow D) in the area of the brake booster vacuum line (12)	The cable tie (arrow D) includes the battery wiring harness, the ground line and the engine wiring harness. : Replace cable tie (arrow S).
	Lower, position

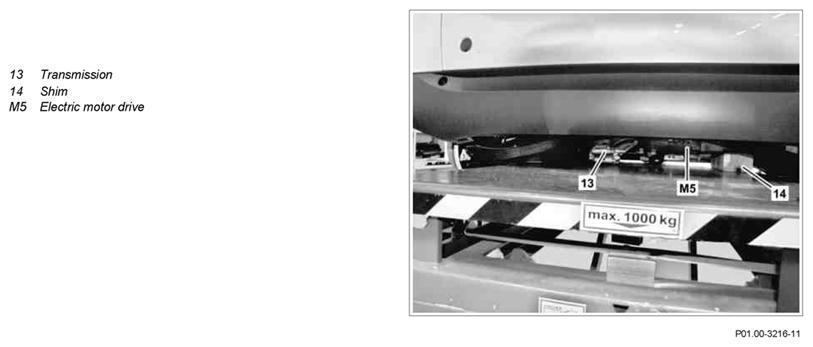

12	Position major assembly lifting platform below electric motor drive (M5) and transmission (13) and support electric motor drive (M5) with suitable base (14)
	000 588 03 62 00 Lifting platform		WS01.00-P-0091A

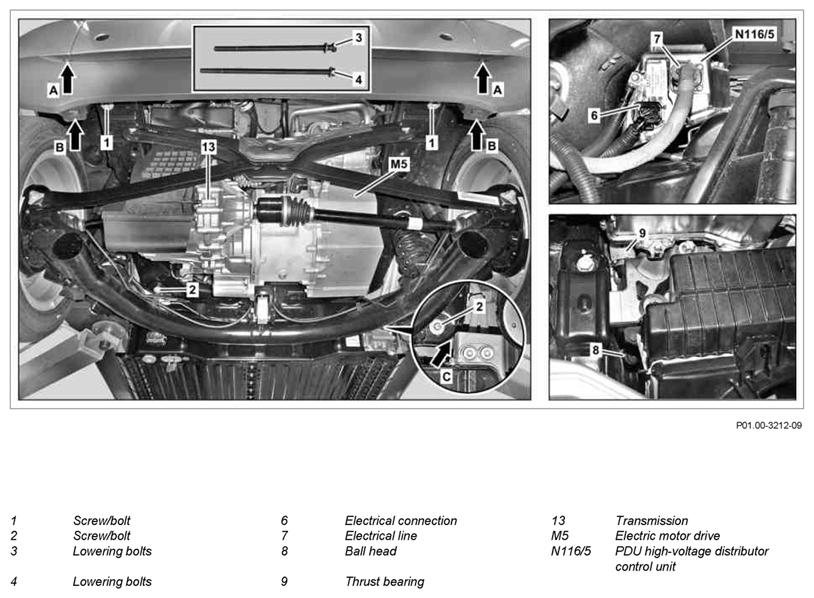

13	Replace screw/bolts (1) by lowering bolts (4) and screw/bolts (2) by lowering bolts (3)
			WF58.50-P-0350-01MEV
		Only use lowering bolts (3, 4) in combination with the spacer sleeves. If spacer sleeves are not used, the high-voltage battery on the electrical line connecting point (arrow C) can be damaged. Before screwing in lowering bolts (3), push spacer sleeves onto lowering bolts (3). Observe installation location of screw/bolts (1, 2). Screw/bolt, integral carrier to body	*BA35.10-P-1001-01F
		Record release bolt	Fig 4
14	Lower rear drive module carefully	When lowering the rear drive module check for unobstructed movement of the electrical lines and hoses. Otherwise they may be damaged. When lowering, ensure that there is unobstructed movement between the rear drive module and the vehicle high-voltage battery on the electrical line connecting point (arrow C). Check unobstructed movement with aid of second person when lowering. When lifting rear drive module, ensure that the pull rod of the hand brake cable is routed in the guide in the undercarriage. Before tightening screw/bolts (1, 2) ensure that the parking brake functions properly by actuating the parking brake lever several times.
15	Remove lifting platform major assembly below electric motor drive (M5) and transmission (13)
16	Install in the reverse order

REAR AXLE CARRIER

Number	Designation		Model 451.3/4
BA35.10-P-1001-01F	Screw/bolt, integral carrier to body	Nm	125

Fig 4: Identifying Record Release Bolt (450 589 00 62 00)

Courtesy of MERCEDES-BENZ USA
