Remove/install oil pressure switch - AR18.40-P-4132MCU
ENGINE 132.910 in MODEL 451.3/4
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||

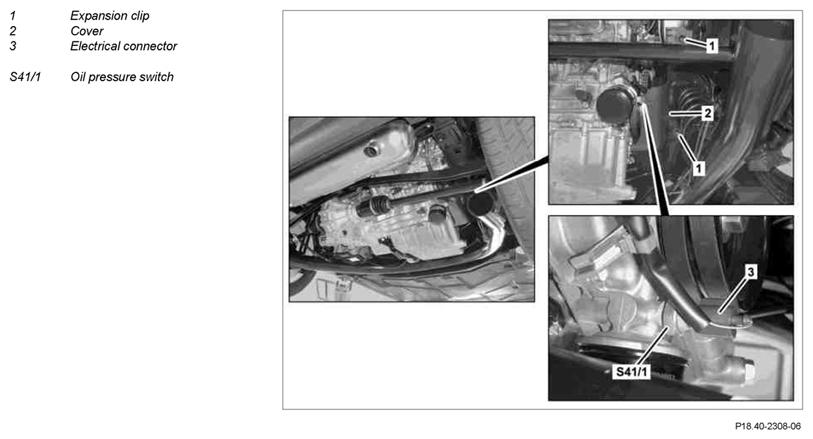

| 2 | Remove expansion clips (1) and remove cover (2) | ||
| 3 | Disconnect electrical connector (3) at oil pressure switch (S41/1) | ||
| 4 | Remove oil pressure switch (S41/1) from timing case cover | *BA18.40-P-1002-01G | |
| Sealant | *BR00.45-Z-1053-01A | ||
| 5 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 6 | Conduct engine test run and check engine around the oil pressure switch (S41/1) for leaks |
OIL LEVEL/OIL PRESSURE SENSOR
| Number | Designation | ENGINE 132.9 | |
|---|---|---|---|
| BA18.40-P-1002-01G | Oil pressure sensor to timing case cover | Nm | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1053-01A | Sealant | Q0000282V000000000 |
