Remove, install heat shield of exhaust system - AR49.10-P-6945MCU
ENGINES 132.910 in MODEL 451.3/4 with CODE (494) USA version

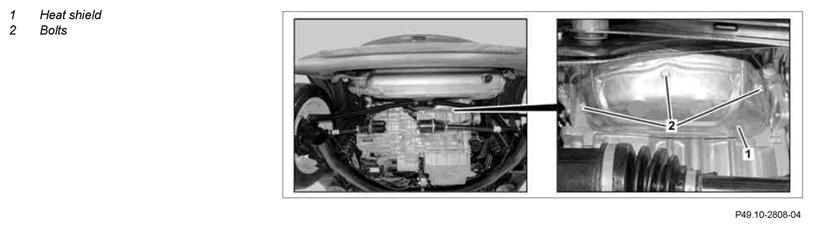

Exhaust manifold heat shield
ENGINES 132.9 in MODEL 451.3/4 as of 31.8.10 except CODE (494) USA version
Exhaust manifold heat shield
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Remove bolts (2) | ||
| 3 | Remove heat shield (1) | ||
| 4 | Install in the reverse order |
