Notes on routing of coolant hoses - AH20.20-P-1000-01LF
ENGINE 157, 276.9, 277, 278, 279, 642 in MODEL 222
ENGINE 157, 278, 279 in MODEL 217
When installing the coolant hoses, make sure that they are routed correctly and free of tension.
Coolant hoses and other components can otherwise be damaged.

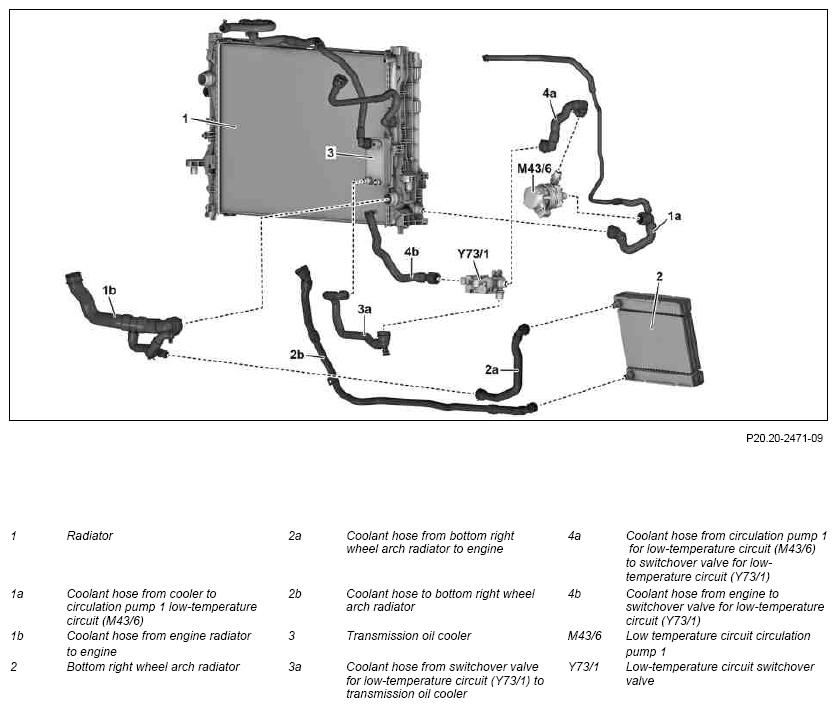

Shown on engine 278 in model 222
