Notes on coolant level - AH20.00-P-1142-01OLP

ENGINE 626

IMPORTANT

IMPORTANT When the engine is cold, the coolant level must reach up to the upper edge of the web (arrow) in the coolant expansion reservoir (1). When coolant is warm: Approx. 1 cm above the upper edge.

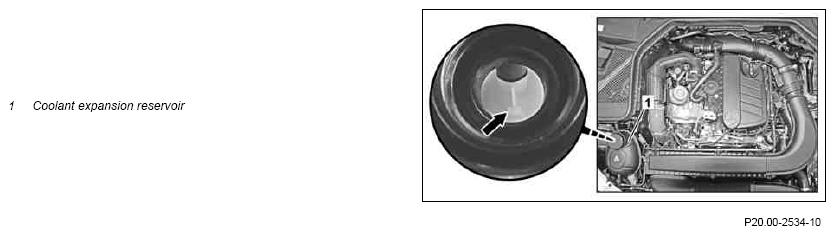

Fig 1: Locating Coolant Expansion Reservoir Web
G10037457Courtesy of MERCEDES-BENZ USA
